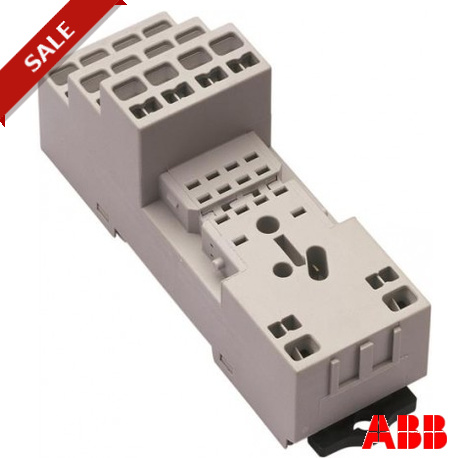

ABB CR-M2LC CR-M2LC 1SVR405651R1200 ABB CR-M2LC Logical socket for 2c/o CR-M relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CR-M2LC 1SVR405651R1200 ABB CR-M2LC Logical socket for 2c/o CR-M relay

CR-M2LC

1SVR405651R1200

ABB

10 Pcs.

CR-M2LC Logical socket for 2c/o CR-M relay Base CR-M2LC

Automation > Relay socket
Plug-in

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered to house miniature control relays securely, the Abb CR-M2LC logical socket provides structured terminal connections for multi-pole switching hardware in control panels. Panel builders utilize relay sockets to streamline wiring layouts and facilitate fast component replacement during routine electrical upkeep. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function: Accessory for interface relays CR-M
  • Sub-Function: Socket for miniature relays
  • Sub-Function 2: Logical socket for miniature relay 2 c/o
  • Terminal Type: Spring Terminals
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • CSA Certificate: CSA_262671-2785566
  • EAC Certificate: EAC_RU_C-PL.ME77.B.01873
  • GOST Certificate: GOST_POCC_DE.AB76.D02256
  • RMRS Certificate: RMRS_12.04008.250
  • RoHS Information: 1SAA981041-4402
  • UR Certificate: UR_E244328
  • eClass: 7.0 27371603
  • Product Net Width: 31 mm
  • Product Net Height: 42.5 mm
  • Product Net Depth: 95 mm
  • Product Net Weight: 0.065 kg

More info

▲

The CR-M2LC socket is from the CR-M (miniature) relay range. The logical socket is suitable for CR-M relays with 2 c/o (SPDT) output contacts. The socket has spring connection terminals. Pluggable function modules, holder and marker are available as accessories.

Ordering

  • EAN:
    4013614380181
  • Minimum Order Quantity:
    10 piece
  • Customs Tariff Number:
    85389099

Dimensions

  • Product Net Width:
    31mm
  • Product Net Height:
    42.5mm
  • Product Net Depth:
    95mm
  • Product Net Weight:
    0.065kg

Container Information

  • Package Level 1 Units:
    10 piece
  • Package Level 1 Width:
    160 mm
  • Package Level 1 Height:
    105 mm
  • Package Level 1 Length:
    75 mm
  • Package Level 1 Gross Weight:
    0.652 kg

Technical

  • Function:
    Accessory for interface relays CR-M
  • Sub-Function:
    Socket for miniature relays
  • Sub-Function 2:
    Logical socket for miniature relay 2 c/o
  • Output:
    none
  • Output Signal:
    none
  • Terminal Type:
    Spring Terminals

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    K
  • ETIM 4:
    EC001456 - Relay socket
  • ETIM 5:
    EC001456 - Relay socket
  • UNSPSC:
    39120000
  • eClass:
    7.0 27371603

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
