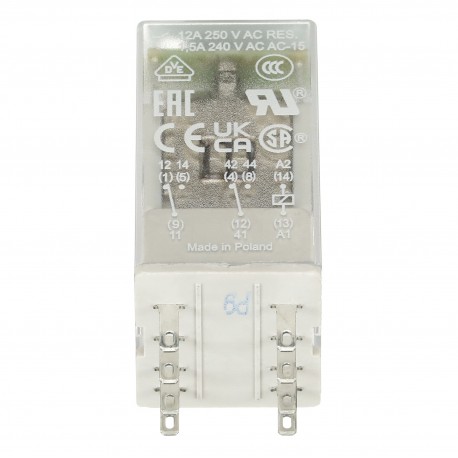

ABB 1SVR405611R1100 1SVR405611R1100 ABB Pluggable interface relay 2c/o, A1-A2 24VDC, 250V/12A, LED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR405611R1100 ABB Pluggable interface relay 2c/o, A1-A2 24VDC, 250V/12A, LED

1SVR405611R1100

405611

ABB

1 Pcs.

Pluggable interface relay 2c/o, A1-A2=24VDC, 250V/12A, LED CR-M024DC2L plug-in relays

Automation > Switching relay
Plug-in

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614497230
Minimum Order Quantity10 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_05
Instructions and Manuals1SVC405600M9000
CAD Dimensional Drawing2CDC001079B0201
EPLAN Data9AAC132577_EPLAN
Dimensions
Product Net Width21.2 mm
Product Net Height35.6 mm
Product Net Depth / Length27.5 mm
Product Net Weight0.033 kg
Technical
FunctionPluggable miniature interface relay CR-M
Sub-FunctionRelay with built in LED
Rated Control Supply Voltage (Us)24 V DC
Rated Operational Voltage250 V AC
Output2 c/o (SPDT) contacts
Output Signal250 V / 12 A
Terminal TypeFlat-Pin Connections
Rated Operational Current AC-12 (Ie)(230 V) 12 A
Rated Operational Current AC-15 (Ie)(120 V) 3 A
(230 V) 1.5 A
Rated Operational Current DC-12 (Ie)(24 V) 12 A
Rated Operational Current DC-13 (Ie)(24 V) 2.5 A
(250 V) 0.1 A
Rated Insulation Voltage (Ui)250 V
Degree of ProtectionIP40
Mounting Position1
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61810-1
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSA300 V AC
Pilot Duty UL/CSAB300
Flammability According to UL94HB
Environmental
Ambient Air TemperatureOperation -40 ... +70 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
RoHS Declaration1SVD981001-4401
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Certificates and Declarations
CCC CertificateCCC_2014010303720193
CQC CertificateCQC2014010303720193
CSA CertificateCSA_2735700
cUR CertificatecUR_E244330
Declaration of Conformity - CCC2020980303000200
Declaration of Conformity - CE1SVD982021-0003
Declaration of Conformity - UKCA1SVD982021-1000
EAC CertificateEAC_RU_C-DE.ME77.B.00446-19
RMRS CertificateRMRS_1740019250
UR CertificateUR_E244330
VDE CertificateVDE_40040327
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width114 mm
Package Level 1 Depth / Length50 mm
Package Level 1 Height61 mm
Package Level 1 Gross Weight0.35 kg
Package Level 1 EAN4013614373237
External Classifications and Standards
Object Classification CodeK
ETIM 7EC001437 - Switching relay
ETIM 8EC001437 - Switching relay
ETIM 9EC001437 - Switching relay
eClassV11.0 : 27371601
UNSPSC39122331
E-Number (Finland)2712657
E-Number (Norway)4187385
E-Number (Sweden)4005333
