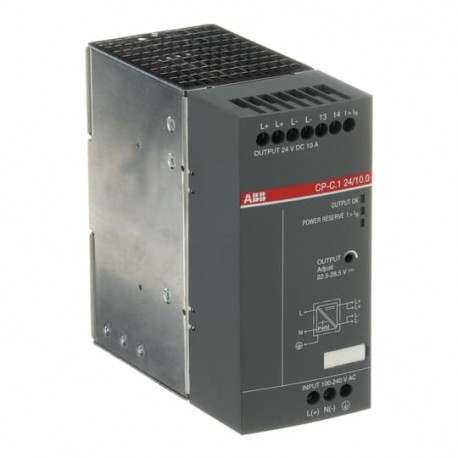

ABB 1SVR360663R1001 1SVR360663R1001 ABB CP-C. 1 24/10 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR360663R1001 ABB CP-C. 1 24/10

1SVR360663R1001

360663

ABB

1 Pcs.

CP-C. 1 24/10 CP-C.1 24/10.0 Power Supply. 24VDC/10A CP-C.1 24/10.0 110-240VAC/100-350VDC-10ACC

Automation > DC-power supply
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Ordering

Minimum Order Quantity: 1 piece
Customs Tariff Number: 85044090

Popular Downloads

Data Sheet, Technical Information: 2CDC114100D0201
Instructions and Manuals: 1SVC360560M0000

Dimensions

Product Net Width: 60 mm
Product Net Height: 129.4 mm
Product Net Depth / Length: 136 mm
Product Net Weight: 1.07 kg

Container Information

Package Level 1 Width: 90 mm
Package Level 1 Depth / Length: 168 mm
Package Level 1 Height: 160 mm
Package Level 1 Gross Weight: 1.21 kg
Package Level 1 EAN: 4013614503825
Package Level 1 Units: 1 piece

Technical

Function: Switch mode power supply
Number of Phases: 1
Rated Input Voltage (UIN): 100 ... 240 V AC
90 ... 300 V DC
Input Voltage (Uin): 85 ... 264 V AC
90 ... 300 V DC
Typical Input Current: (115 V AC) 2.3 A
(230 V AC) 1.2 A
Hold-up Time: (230 V AC) min. 40 ms
Rated Frequency (f): 50 Hz
60 Hz
Rated Frequency Limits: 45 ... 65 Hz
Characteristic of Output: U/I characteristic curve with power reserve
Rated Output Power: 240 W
Output Power: 240 W
Rated Output Voltage: 24 V DC
Output Voltage (Uout): 24 V DC
Rated Output Current: -25 °C ... +40 °C 15 A
-25 °C ... +60 °C 10 A
Output Current: 10 A
Output Current Maximum (Iout): 15 A
Rated Impulse Withstand Voltage (Uimp): Input Circuit / Output Circuit 4 kV
Input Circuit / PE 4 kV
Input Circuit / Relay Contact 4 kV
Output Circuit / PE 0.5 kV
Output Circuit 0.5 kV
Rated Insulation Voltage (Ui): Input Circuit / Output Circuit 300 V
Input Circuit / PE 300 V
Input Circuit / Relay Contact 300 V
Output Circuit / PE 50 V
Degree of Protection: Housing IP20
Terminals IP20
Pollution Degree: 2
Connecting Capacity Input Circuit: Flexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 4 mm²
Connecting Capacity Output Circuit: Flexible with Ferrule 0.5 ... 2.5 mm²
Flexible 0.5 ... 2.5 mm²
Rigid 0.5 ... 4 mm²
Tightening Torque: Auxiliary Circuit 0.5 N·m
Control Circuit 0.9 N·m
Input Circuit 0.5 N·m
Output Circuit 0.5 N·m
Wire Stripping Length: Auxiliary Circuit 8 mm
Input Circuit 8 mm
Output Circuit 8 mm
Recommended Screw Driver: Input Circuit / Output Circuit PH1
Input Circuit / Output Circuit 0.8 x 4
Minimum Mounting Distance: Electrical Conductive Board, Horizontal 25 mm
Electrical Conductive Board, Vertical 25 mm
Other Device Same Type, Horizontal 25 mm
Other Device Same Type, Vertical 25 mm
Mounting Position: Position 1, 7
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards: CAN/CSA C22.2 No.107.1
EN 50581
IEC/EN 60950-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61204
UL 508

Environmental

Ambient Air Temperature: Operation -25 ... +70 °C
Storage -40 ... +85 °C
Resistance to Vibrations acc. to IEC 60068-2-6: 10-58 Hz, ±0.15 mm; 58-150 Hz, 2g, 10 sweep cycles each axis
Resistance to Shock acc. to IEC 60068-2-27: 30g / 3 shocks / 6 ms
Resistance to Damp Heat acc. to IEC 60068-2-30: Test Db: 55°C, 2 cycles
RoHS Status: Following EU Directive 2011/65/EU

Technical UL/CSA

Connecting Capacity Input Circuit UL/CSA: Flexible with Ferrule 20-12 AWG
Flexible 20-12 AWG
Rigid 20-10 AWG
Connecting Capacity Output Circuit UL/CSA: Flexible 20-12 AWG
Rigid 20-10 AWG
Tightening Torque UL/CSA: Input Circuit 4.4 in·lb
Output Circuit 4.4 in·lb

Electromagnetic Compatibility

Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2: Level 4 Air Discharge 15 kV
Level 4 Contact Discharge 8 kV
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3: Level 3 10 V/m
Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4: Level 4 Power Supply Port Signal 4 kV
Surge Immunity acc. to IEC 61000-4-5: Level 4 Line-to-Ground 4 kV
Level 4 Line-to-Line 2 kV
Conducted Disturbances Immunity acc. to IEC 61000-4-6: Level 3 10 V
Electromagnetic Compatibility (EMC): Immunity - Class B
Emission - Class B

Certificates and Declarations (Document Number)

ABS Certificate: ABS_17-HG1591548-2-PDA
CB Certificate: CB_DK-45679-A3-UL
cULus Certificate: cULus508_20150522-E174460
cURus Certificate: cURus60950_E196145-A9-UL; cURusANSI-12-12_20160916_E317914
Declaration of Conformity - CE: 1SVD982010-0002
DNV GL Certificate: DNV_GL_TAA00000YB_1
EAC Certificate: EAC_RU_C-DE.ME77.B.02550
Instructions and Manuals: 1SVC360560M0000
RoHS Information: 1SVD982010-0002

Classifications

Object Classification Code: T
ETIM 5: EC002540 - DC-power supply
ETIM 6: EC002540 - DC-power supply
ETIM 7: EC002540 - DC-power supply
eClass: 7.0 27049002
UNSPSC: 39121004
E-Number (Sweden): 5213180

ETIM for 1SVR360663R1001 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) AC/DC
1st secondary output voltage (EF006792) 24 V
2nd secondary output voltage (EF006797) 0 V
3rd secondary output voltage (EF006800) 0 V
Max. output current 1 (EF008284) 15 A
Max. output current 2 (EF008285) 0 A
Max. output current 3 (EF008286) 0 A
Secondary voltage adjustable (EF007002) No
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output voltage 2 (EF009394) 0 V
Nominal value output voltage 3 (EF009395) 0 V
Nominal value output current 1 (EF009396) 10 A
Nominal value output current 2 (EF009397) 0 A
Nominal value output current 3 (EF009398) 0 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage AC 50 Hz (EF007076) 264 V
Rated supply voltage AC 60 Hz (EF007077) 264 V
Rated supply voltage DC (EF007078) 300 V
Output voltage stabilized (EF003092) Yes
Power consumption (EF000346) 256 VA
Power output (EF003034) 240 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in width (EF000846) 60 mm
Built-in height (EF000332) 129.4 mm
Direct mounting possible (EF005689) No
Width (EF000008) 60 mm
Height (EF000040) 129.4 mm
Depth (EF000049) 136 mm
Suitable for safety functions (EF001597) No
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
