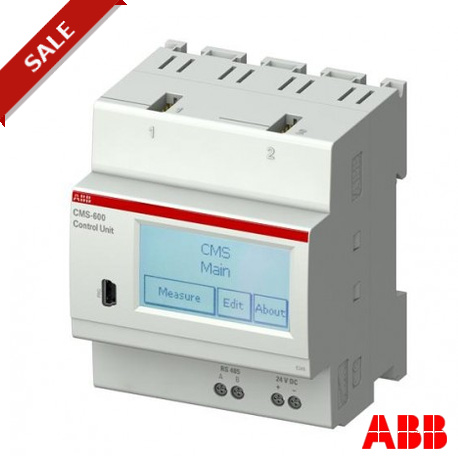

ABB 2CCA880000R0001 2CCA880000R0001 ABB Control unit, Modbus RTU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCA880000R0001 ABB Control unit, Modbus RTU

2CCA880000R0001

880000

ABB

1 Pcs.

Control unit, Modbus RTU CMS-600 Control Unit

Automation > Accessories/spare parts for low-voltage switch technology
CMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A control unit like the ABB 2CCA880000R0001 processes system telemetry and manages communication protocols within automated power distribution networks. These modules facilitate real-time data exchange and remote monitoring for energy metering and circuit protection setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Product Main Type: CMS
  • Product Name: Control unit
  • Rated Operational Voltage: 230 / 400 V AC
  • Data Sheet, Technical Information: 2CCC481002C0201
  • RoHS Information: 2CCC441009D0202
  • Product Net Width: 71.8 mm
  • Product Net Height: 87 mm
  • Product Net Length: 64.9 mm
  • Product Net Depth: 64.9 mm
  • Product Net Weight: 0.153 kg
  • EAN: 7612271418700
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 90303900
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 75 mm

More info

▲

This component is part of the CMS (Circuit Monitoring Systems) familiy. CMS components are made to measure the final circuits (branches) of installations. Each monitoring system consists of a Control Unit and sensors with different measurement ranges and mounting possibilities. Up to 2 x 32 sensors can be connected to each CMS-600 Control Unit. 247 identifiers can be set on the device. Thereby it is possible to aquire thousands of measurement points over one bus line. This means the CMS-600 can be used as a highly-efficient-measurement system, even in very large, extensively networked installations. The user can get access to the data via an integrated touch-display or remotely by a RS485 Modbus interface.

Ordering

  • EAN:
    7612271418700
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    90303900

Dimensions

  • Product Net Width:
    71.8mm
  • Product Net Height:
    87mm
  • Product Net Length:
    64.9 mm
  • Product Net Depth:
    64.9mm
  • Product Net Weight:
    0.153kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    75 mm
  • Package Level 1 Height:
    90 mm
  • Package Level 1 Length:
    100 mm
  • Package Level 1 Gross Weight:
    0.055 kg
  • Package Level 1 EAN:
    7612271418700

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Product Main Type:
    CMS
  • Product Name:
    Control unit
  • Rated Operational Voltage:
    230 / 400 V AC

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 5:
    EC002498 - Accessories for low-voltage switch technology
  • Object Classification Code:
    P
