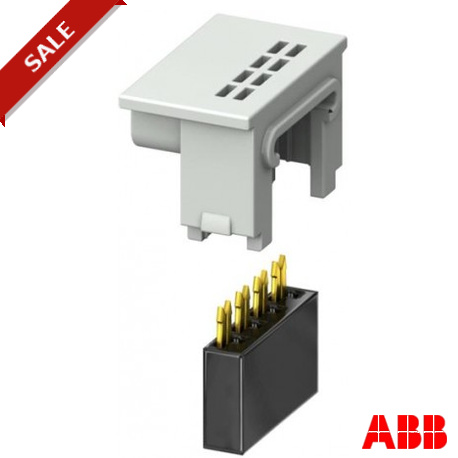

ABB 2CCA880145R0001 2CCA880145R0001 ABB Connector set 35 pieces View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCA880145R0001 ABB Connector set 35 pieces

2CCA880145R0001

880145

ABB

1 Pcs.

Connector set 35 pieces Bag with 35 CMS-820 connectors

Automation > Accessories/spare parts for low-voltage switch technology
CMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB 2CCA880145R0001 connector set provides modular plug-in connections for multi-channel energy monitoring sensors within electrical distribution boards. These bulk connector kits simplify wiring architectures by streamlining signal routing across current measurement strips. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • Product Main Type: CMS
  • Product Name: Connector set
  • Rated Operational Voltage: 230 / 400 V AC
  • Data Sheet, Technical Information: 2CCC481002C0201
  • RoHS Information: 2CCC441009D0202
  • Product Net Width: 14.4 mm
  • Product Net Height: 9.5 mm
  • Product Net Length: 9.25 mm
  • Product Net Depth: 9.25 mm
  • Product Net Weight: 0.024 kg
  • EAN: 7612271419240
  • Minimum Order Quantity: 35 piece
  • Customs Tariff Number: 85366953
  • Package Level 1 Units: 35 piece
  • Package Level 1 Width: 110 mm

More info

▲

This component is part of the CMS (Circuit Monitoring Systems) familiy. CMS components are made to measure the final circuits (branches) of installations. Each monitoring system consists of a Control Unit and sensors with different measurement ranges and mounting possibilities. To create a bus connection between the Control Unit an the sensors, there are no any additional tools needed. The insulation displacement connectors can be connected by applying a small amount of pressure to the flat cable. Quick, easy and reliable.

Ordering

  • EAN:
    7612271419240
  • Minimum Order Quantity:
    35 piece
  • Customs Tariff Number:
    85366953

Dimensions

  • Product Net Width:
    14.4mm
  • Product Net Height:
    9.5mm
  • Product Net Length:
    9.25 mm
  • Product Net Depth:
    9.25mm
  • Product Net Weight:
    0.024kg

Container Information

  • Package Level 1 Units:
    35 piece
  • Package Level 1 Width:
    110 mm
  • Package Level 1 Height:
    10 mm
  • Package Level 1 Length:
    190 mm
  • Package Level 1 Gross Weight:
    0.027 kg
  • Package Level 1 EAN:
    7612271419240

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Product Main Type:
    CMS
  • Product Name:
    Connector set
  • Rated Operational Voltage:
    230 / 400 V AC

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC002498 - Accessories for low-voltage switch technology
  • ETIM 5:
    EC002498 - Accessories for low-voltage switch technology
  • Object Classification Code:
    X
