1SFN085907R1000 ABB CONNECTION BAR BEA460H/S6
1SFN085907R1000
085907
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
"A" SECRLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

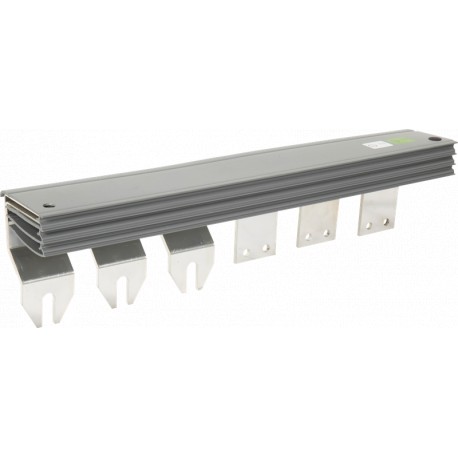

Manufactured by Abb with part number 1SFN085907R1000, this connection bar serves as a heavy-duty busbar link for high-amperage contactors. Such electrical hardware is typically employed in large motor control centers and power switching switchboards to bridge terminals and distribute heavy electrical loads securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SFC380046-89
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 426 mm
- Product Net Depth / Length: 72 mm
- Product Net Height: 110 mm
- Product Net Weight: 2.3 kg
- Terminal Type: Screw Terminals
- Suitable For: AF400
- Suitable for Product Class: Block Contactors
- Product Name: Connection Set
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC380046-89 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 426 mm |
| Product Net Depth / Length | 72 mm |
| Product Net Height | 110 mm |
| Product Net Weight | 2.3 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF400 |
| AF460 | |
| S6 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT005309 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 426 mm |
| Package Level 1 Depth / Length | 110 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Gross Weight | 2.45 kg |
| Package Level 1 EAN | 7320500225714 |
| External Classifications and Standards | |
| Object Classification Code | W |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39121529 |
| E-Number (Finland) | 3709318 |
| E-Number (Norway) | 4116152 |
| E-Number (Sweden) | 4116152 |
