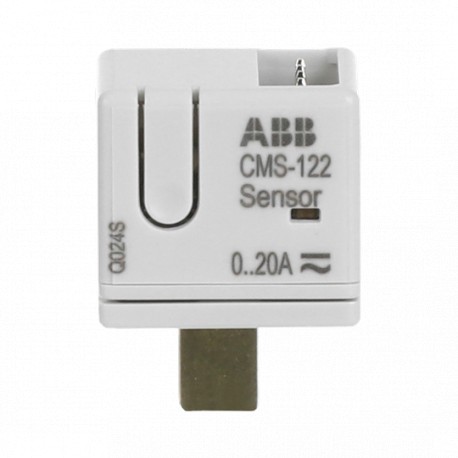

ABB 2CCA880212R0001 2CCA880212R0001 ABB CMS-122PS Sensor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCA880212R0001 ABB CMS-122PS Sensor

2CCA880212R0001

880212

ABB

1 Pcs.

CMS-122PS Sensor 20A Open Core Sensor CMS-122PS

Automation > Accessories/spare parts for low-voltage switch technology
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB open-core current sensor, catalog number 2CCA880212R0001, is integrated into sub-distribution monitoring setups to measure AC electrical currents without breaking primary circuit connections. These sensors feed precise consumption data into energy management systems.

Final pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108470A0920
  • Product Compatibility: SCU100 & SCU200
  • Rated Primary Current (I pn ): 20 A
  • Communication Interface: InSite bus(Flat cable)
  • Accuracy: 1% FS
  • Measuring Range: 0.1…20 A
  • Number of Inputs: Primary 1
  • Sensor Type: Open-core (18 mm)
  • Frequency ( f ): Rated Current 50 Hz
  • Power Consumption (@P cons ): 0.18 W
  • RoHS Declaration: 9AKK108470A6924
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20241024
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108470A0920
Technical
Product CompatibilitySCU100 & SCU200
Rated Primary Current (Ipn)20 A
Communication InterfaceInSite bus(Flat cable)
Accuracy1% FS
Measuring Range0.1…20 A
Number of InputsPrimary 1
Sensor TypeOpen-core (18 mm)
OutputOther
Electrical
Frequency (f)Rated Current 50 Hz
Power Consumption (@Pcons)0.18 W
Material Compliance
RoHS Declaration9AKK108470A6924
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20241024
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -25 ... 70 °C
Environmental Information2CCC481001D0202
Dimensions
Product Net Width17.4 mm
Product Net Height26.5 mm
Product Net Depth / Length41 mm
Product Net Weight12 g
Bore Diameter10 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight83 g
E-Number (Finland)6719040
E-Number (Norway)8002527
E-Number (Switzerland)981911103
Certificates and Declarations
DeclarationCE
REACH
RoHS
Declaration of Conformity - CE2CCC005106D0201
Installation
Instructions and Manuals9AKK106930A5216
Mounting TypeSurface Mounting
Popular Downloads
Data Sheet, Technical Information2CCC481003C0201
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
UNSPSC41111928
eClassV11.0 : 27210123
IDEA Granular Category Code (IGCC)6160 >> Current sensors
Object Classification CodeP
