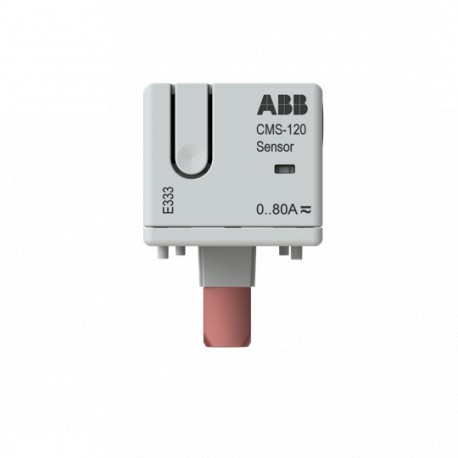

ABB 2CCA880210R0001 2CCA880210R0001 ABB CMS-120PS Sensor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CCA880210R0001 ABB CMS-120PS Sensor

2CCA880210R0001

880210

ABB

1 Pcs.

CMS-120PS Sensor Open Core Sensor 80A CMS-120PS

Automation > Accessories/spare parts for low-voltage switch technology
Other modular devices

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB open-core current sensor (2CCA880210R0001) is designed to monitor electrical current flow in distribution systems without requiring physical disconnection of the primary conductor. These split-core sensors are widely used in energy management and sub-metering applications for non-invasive power tracking.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108470A0920
  • Product Compatibility: SCU100 & SCU200
  • Rated Primary Current (I pn ): 80 A
  • Communication Interface: InSite bus(Flat cable)
  • Accuracy: 1% FS
  • Measuring Range: 0.1…80 A
  • Number of Inputs: Primary 1
  • Sensor Type: Open-core (18 mm)
  • Frequency ( f ): Rated Current 50 Hz
  • Power Consumption (@P cons ): 0.18 W
  • RoHS Declaration: 9AKK108470A6924
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20241024
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108470A0920
Technical
Product CompatibilitySCU100 & SCU200
Rated Primary Current (Ipn)80 A
Communication InterfaceInSite bus(Flat cable)
Accuracy1% FS
Measuring Range0.1…80 A
Number of InputsPrimary 1
Sensor TypeOpen-core (18 mm)
OutputOther
Electrical
Frequency (f)Rated Current 50 Hz
Power Consumption (@Pcons)0.18 W
Material Compliance
RoHS Declaration9AKK108470A6924
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20241024
REACH Declaration9AKK108467A9482
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Business
Environmental
Ambient Air TemperatureOperation -25 ... 70 °C
Environmental Information2CCC481001D0202
Dimensions
Product Net Width17.4 mm
Product Net Height26.5 mm
Product Net Depth / Length41 mm
Product Net Weight12 g
Bore Diameter10 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight83 g
E-Number (Finland)6719038
E-Number (Norway)8002525
E-Number (Switzerland)981911603
Certificates and Declarations
DeclarationCE
REACH
RoHS
Declaration of Conformity - CE2CCC005106D0201
Installation
Instructions and Manuals9AKK106930A5216
Mounting TypeSurface Mounting
Popular Downloads
Data Sheet, Technical Information2CCC481003C0201
External Classifications and Standards
ETIM 9EC002048 - Current transformer
ETIM 10EC002048 - Current transformer
UNSPSC41111928
eClassV11.0 : 27210123
IDEA Granular Category Code (IGCC)6160 >> Current sensors
Object Classification CodeP
