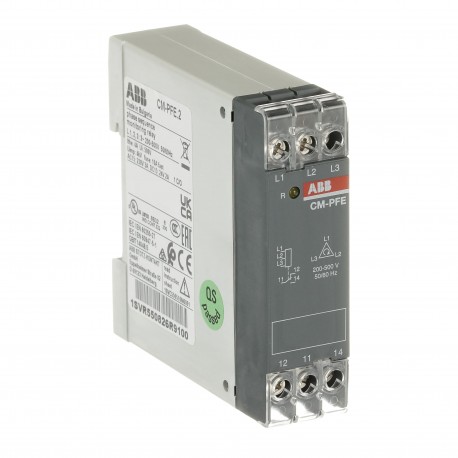

ABB 1SVR550826R9100 1SVR550826R9100 ABB CM-PFE.2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SVR550826R9100 ABB CM-PFE.2

1SVR550826R9100

550826

ABB

1 Pcs.

CM-PFE.2 CM-PFE.2 Phase Sec./Fault Control Relay CM-PFE.2 Phase sequence monitoring relay 1c/o, L1-L2-L3=200-500VAC

Automation > Phase monitoring relay
Electronic relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614501814
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC112231D0201
Instructions and Manuals1SVC550510M0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width22.5 mm
Product Net Height78 mm
Product Net Depth / Length78.5 mm
Product Net Weight0.067 kg
Technical
FunctionPhase failure detection
Phase sequence monitoring
Measuring Range(L-L) 200 ... 500 V AC
Time RangeTripping Delay (ON or OFF) 500 ms
Rated Control Supply Voltage (Us)(L-L) 200 ... 500 V AC
Rated Frequency (f)Supply Circuit 50/60 Hz
Output1 C/O (SPDT) Contact
Terminal TypeScrew Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)Input Circuit 6 kV
Rated Insulation Voltage (Ui)Input Circuit / Output Circuit 600 V
Degree of ProtectionHousing IP50
Terminals IP20
Overvoltage CategoryIII
Pollution Degree3
Short-Circuit Protective DevicesOutput Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A
Connecting CapacityFlexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque0.6 ... 0.8 N·m
Wire Stripping Length10 mm
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSAOutput Circuit 250 V AC
Contact Rating UL/CSAB300
Connecting Capacity UL/CSAFlexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA7.08 in·lb
Pilot Duty UL/CSAB300
Environmental
Ambient Air TemperatureOperation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
SCIP23e69657-e5b7-4fd7-a62c-ba9e920e61d4 Germany
Simplified SCIPe7450798-5220-4258-968a-4b0e509b0f96 Italy
1d88e429-ac05-47b3-96c4-b9b3a1cbc128 Germany
77ff30b1-2163-41f5-8f8f-62cae1280ca1 Croatia
aba8499e-1951-4ea1-8fa0-b0bafe89b4aa Denmark
bf0ebf92-95d5-4ca7-aaee-41243ded78fc Poland
8a88fa76-b872-4627-bade-f4dd8035315c Germany
2ffc4ab9-16c9-4a93-a918-591890f42359 Finland
d068c773-7385-4d39-8bad-f0fdfed1e28e Belgium
14a80d71-d335-4d37-81aa-a97828463b02 Norway
7f8c465a-4fe1-4ed7-aaf3-c20efd1a9eb8 Estonia
2f5cd5b7-941c-41cf-8280-656ea65e014c Poland
b6b2cfbe-39c7-4197-8a63-1672a777f133 Germany
2d0020bf-4646-4bfe-8b7f-2cf4a3169593 Netherlands
30e3d5de-65bf-4d4b-9fd7-e84ac79d4bb7 Hungary
70f4e7e2-dcd7-4a7b-a12b-3265b1b2ca81 Greece
894ee200-a527-4b6e-a558-bbdc78803a7a Portugal
f73fc536-734a-4f13-b02d-d73a9e8628c4 Bulgaria
454da45e-9da1-4837-955c-23e8febafaa2 Czech Republic
64c6c252-f901-4dc5-9f2d-658270d49355 Sweden
0c9d8197-1c37-43e2-b6b8-ea23e99f913c Germany
db845644-e8f4-42c4-873b-c0b4c2e228f4 France
fa81384b-0cbb-4356-8ea4-3f447ef5134e France
1ec20a4a-8117-4a47-80a4-420b72a8d8e9 Sweden
3424a35d-b006-4522-92d9-fcc2a9f67f13 Poland
b7b26d94-55a3-422e-a721-ce2b58c4c062 Hungary
bf7cf2ae-e69c-4430-9c1d-fe8e71d31ca2 Belgium
df76d396-5463-4452-82fd-137c3c6a2207 Spain
Toxic Substances Control Act - TSCA2CMT2023-006536
ABB EcoSolutions
Environmental Product Declaration - EPD1SAC200438H0001
Certificates and Declarations
CCC CertificateCCC_2013010303605960
CQC CertificateCQC2013010303605960
cUL CertificatecUL508_E140448
Declaration of Conformity - CCC2020980303000202
Declaration of Conformity - CE1SVD981026-00
Declaration of Conformity - UKCA1SVD981026-10
UL CertificateUL508_E140448
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width23 mm
Package Level 1 Depth / Length82 mm
Package Level 1 Height82 mm
Package Level 1 Gross Weight0.078 kg
Package Level 1 EAN4013614501814
Package Level 2 EAN4013614580765
External Classifications and Standards
Object Classification CodeB
ETIM 7EC001441 - Phase monitoring relay
ETIM 8EC001441 - Phase monitoring relay
ETIM 9EC001441 - Phase monitoring relay
eClassV11.0 : 27371803
UNSPSC39122332
