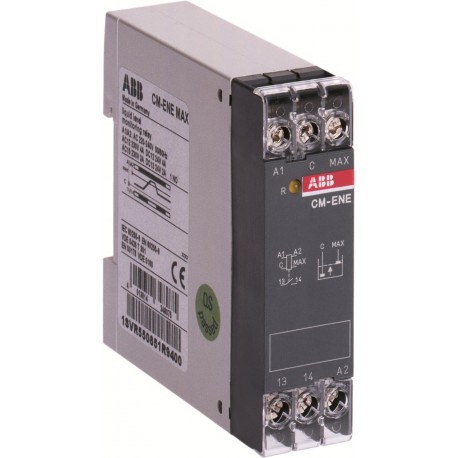

1SVR550855R9400 ABB CM-ENE MAX Liquid level relay 1n/o, 24VAC

1SVR550855R9400

550855

ABB

1 Pcs.

CM-ENE MAX Liquid level relay 1n/o, 24VAC liquid level,1no,A1-A2=24Vac

Automation > (Fill) level monitoring relay
Monitoring

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
EAN4013614348099
Minimum Order Quantity1 piece
Customs Tariff Number85364900
Popular Downloads
Data Sheet, Technical Information2CDC110004C0210_02
Instructions and Manuals1SVC550520M0000
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width22.5 mm
Product Net Height78 mm
Product Net Depth / Length78.5 mm
Product Net Weight0.106 kg
Technical
FunctionFilling monitoring
Sub-FunctionOverflow protection
Number of Electrodes2
Measuring Range0 ... 100 kΩ
Rated Control Supply Voltage (Us)24 V AC
Rated Frequency (f)Supply Circuit 50/60 Hz
Output1 N/O Contact
Terminal TypeScrew Terminals
Rated Operational Current AC-12 (Ie)(230 V) 4 A
Rated Operational Current AC-15 (Ie)(230 V) 3 A
Rated Operational Current DC-12 (Ie)(24 V) 4 A
Rated Operational Current DC-13 (Ie)(24 V) 2 A
Rated Impulse Withstand Voltage (Uimp)Measuring Circuit / Output Circuit 4 kV
Supply Circuit / Measuring Circuit 4 kV
Supply Circuit / Output Circuit 4 kV
Rated Insulation Voltage (Ui)Measuring Circuit / Output Circuit 250 V
Supply Circuit / Measuring Circuit 250 V
Supply Circuit / Output Circuit 250 V
Degree of ProtectionHousing IP50
Terminals IP20
Short-Circuit Protective DevicesOutput Circuit NO - F Type Fuses 10 A
Connecting CapacityFlexible with Ferrule 2x 0.75 ... 1.5 mm²
Flexible 2x 1 ... 1.5 mm²
Rigid 2x 0.75 ... 1.5 mm²
Tightening Torque0.6 ... 0.8 N·m
Wire Stripping Length10 mm
Mounting Position1 ... 6
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
StandardsCAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508
Technical UL/CSA
Maximum Operating Voltage UL/CSAOutput Circuit 300 V AC
Contact Rating UL/CSAB300
Connecting Capacity UL/CSAFlexible with Ferrule 2x 18-16 AWG
Flexible 2x 18-16 AWG
Rigid 2x 18-16 AWG
Tightening Torque UL/CSA7.08 in·lb
Environmental
Ambient Air TemperatureOperation -20 ... +60 °C
Storage -40 ... +85 °C
Maximum Operating Altitude PermissibleWithout Derating 2000 m
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SVD981001-4501
RoHS Declaration1SVD981001-4401
SCIPdf7a7df7-a3ec-429d-b9cb-42d0691c9aff Germany
Simplified SCIP2c275e2e-db45-4a4c-8eaa-140d21521fbe Finland
2eba3e89-6b14-468d-b01e-76cfbb0481df Poland
3bcd618a-e453-489f-9553-0fb7f3ee248d Belgium
bd1b2a1c-a4f3-45ec-9a30-b04ec4cae04e Germany
eb782991-dcd9-4148-9b8a-57c82ab74052 France
6d455b36-1f87-42d2-a073-52afc8421177 Belgium
a1390a09-54d5-4ccb-b282-4262d5d75695 Hungary
b4ffcb99-b679-4194-b493-e0ddc78fa2aa Bulgaria
982f0590-1fea-4fa6-9c9c-d1b5a561edbb Poland
a628b384-6e77-4dc3-9fa3-6393c0f38123 Denmark
4822f126-0a2f-4283-ab02-b99e0d16af55 Czech Republic
cfc4aa6c-0cb1-4be3-8626-6dac34ecd0d0 Germany
0e4f546a-f61b-4b42-ad2e-d62cc7bf06bf Italy
1ae65619-72fe-4d4c-aa08-ef2cd0978a3b Germany
be072f75-3808-4f51-bc44-042d14ff0fae Sweden
737feabc-152d-4d84-8bad-7d167d964517 Poland
a4128b97-3179-4850-a30f-e82d53707bb6 Norway
d09cbf6f-a7a7-4051-9794-ab229061449b Hungary
5053860e-d27e-41a4-a4db-7255b5f4188a Spain
5e6593e7-810c-4ab6-9081-60539ceeaee4 Croatia
49484e80-6df3-47ad-b075-40c3b29898fb Sweden
9fc1bffa-26a0-46b4-be5b-db41df6a0221 France
61541c68-ecf4-41b2-ab91-8c43f27ab583 Netherlands
ff816bbe-20ff-40a9-b753-6ba4ab9157d5 Greece
52613f35-d3dc-4261-b78b-0c942f4b67b9 Portugal
18bf7405-fd2a-4fc4-ae7e-edf5925f7050 Estonia
73a36fd5-787c-42b7-b651-ef2afa704326 Germany
Toxic Substances Control Act - TSCA2CMT2023-006536
Certificates and Declarations
CB CertificateCB_DK-8880
CCC CertificateCCC_2013010303605960
CQC CertificateCQC2013010303605960
cUL CertificatecUL508_E140448
Declaration of Conformity - CCC2020980303000202
Declaration of Conformity - CE1SVD981024-00
Declaration of Conformity - UKCA1SVD981024-10
UL CertificateUL508_E140448
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width23 mm
Package Level 1 Depth / Length82 mm
Package Level 1 Height82 mm
Package Level 1 Gross Weight0.118 kg
Package Level 1 EAN4013614348099
Package Level 2 EAN4013614580888
External Classifications and Standards
Object Classification CodeB
ETIM 7EC001447 - (Fill) level monitoring relay
ETIM 8EC001447 - (Fill) level monitoring relay
ETIM 9EC001447 - (Fill) level monitoring relay
eClassV11.0 : 27371813
UNSPSC39122331
E-Number (Finland)2712851
E-Number (Norway)4187269
E-Number (Sweden)3860806

ETIM for 1SVR550855R9400 Relays (EC001447)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
With detachable clamps (EF003340) No
Number of inputs for electrodes (EF003427) 2
Min. adjustable operate delay time (EF008195) 0 s
Max. permitted operate delay time (EF008194) 0 s
Min. adjustable off-delay time (EF008192) 0 s
Max. permitted off-delay time (EF008191) 0 s
Response value sensitivity adjustable (EF003429) Yes
Physical measurement principle (EF008238) Conductive
Cascadable (EF000507) No
Width (EF000008) 22.5 mm
Height (EF000040) 78 mm
Depth (EF000049) 78.5 mm
