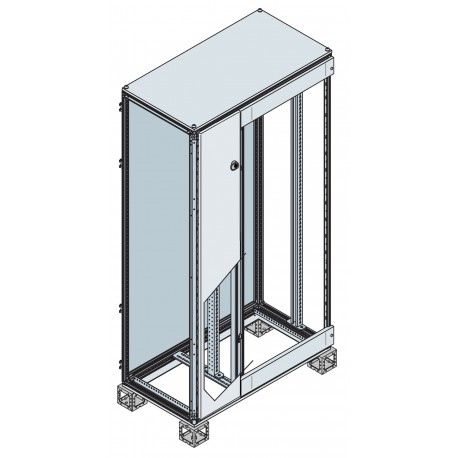

ES2084MF2K ABB CELLS EN.2000X800X400+CABLE CO.W 2007035
ES2084MF2K
2007035
ABB
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
TURATI SERIE IS2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB ES2084MF2K cells enclosure acts as a modular structural housing designed to segregate and organize complex electrical switchgear and multi-compartment automation configurations. Such structural units are deployed in industrial setups to manage power distribution safely and protect internal components against environmental factors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Configuration Type: 6. Cabinet for configuration with compartments
- Enclosure Type: Pre assembled - cabinet for configuration with comprtments
- Product Type: 5B5B10B180
- Door Type: Single
- Door Surface Finishing: Opaque
- Remarks: ETIM
- Surface Finishing: Orange Peel, RAL 7035
- Material: Sheet Steel Metal
- Door Material: Steel Sheet
- RAL Number: RAL 7035 - Light Grey
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20250108
- WEEE Category: Product Not in WEEE Scope
More info
▲| Technical | |
|---|---|
| Configuration Type | 6. Cabinet for configuration with compartments |
| Enclosure Type | Pre assembled - cabinet for configuration with comprtments |
| Product Type | 5B5B10B180 |
| Door Type | Single |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Sheet Steel Metal |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP55 |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 810 mm |
| Product Net Height | 2111.5 mm |
| Product Net Depth / Length | 840 mm |
| Product Net Weight | 88.670 kg |
| Reference Depth/Length | 400 mm |
| Reference Height | 2000 mm |
| Reference Width | 800 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 94.330 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Pre assembled |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.1 : 27180101 |
| Object Classification Code | U |
| Standards | NEMA 1, 12 |
