ES2025MF4K ABB CELLS EN2000X1200X500+CABLE CO.W 4007035
ES2025MF4K
4007035
ABB
1 Pcs.
CELLS EN2000X1200X500+CABLE CO.W=4007035
IS2 PRE-MONT. CELD.+COL400 2000X1200X500
Control and Automation Board W 1200 mm H 2000 mm D 500 mm
Automation > Enclosure/switchgear cabinet (empty)
TURATI SERIE IS2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

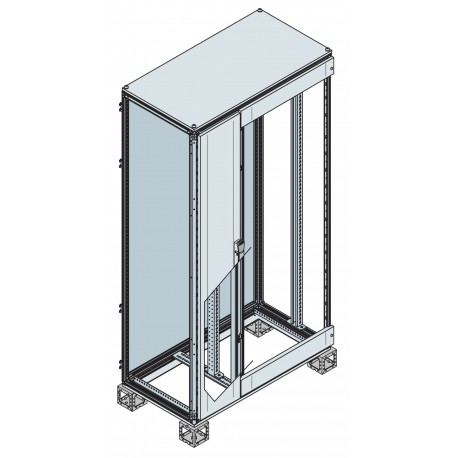

An ES2025MF4K ABB cells enclosure provides an oversized structural housing framework for large industrial compartmentalized switchgear assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Configuration Type: 6. Cabinet for configuration with compartments
- Enclosure Type: Pre assembled - cabinet for configuration with comprtments
- Product Type: 5B5B10B180
- Door Type: Double
- Door Surface Finishing: Opaque
- Remarks: ETIM
- Surface Finishing: Orange Peel, RAL 7035
- Material: Sheet Steel Metal
- Door Material: Steel Sheet
- RAL Number: RAL 7035 - Light Grey
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20250108
- WEEE Category: Product Not in WEEE Scope
More info
▲| Technical | |
|---|---|
| Configuration Type | 6. Cabinet for configuration with compartments |
| Enclosure Type | Pre assembled - cabinet for configuration with comprtments |
| Product Type | 5B5B10B180 |
| Door Type | Double |
| Door Surface Finishing | Opaque |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Sheet Steel Metal |
| Door Material | Steel Sheet |
| RAL Number | RAL 7035 - Light Grey |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP55 |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 1210 mm |
| Product Net Height | 2111.5 mm |
| Product Net Depth / Length | 1240 mm |
| Product Net Weight | 118.6560 kg |
| Reference Depth/Length | 500 mm |
| Reference Height | 2000 mm |
| Reference Width | 1200 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 126.230 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Pre assembled |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.1 : 27180101 |
| Object Classification Code | U |
| Standards | NEMA 1, 12 |
