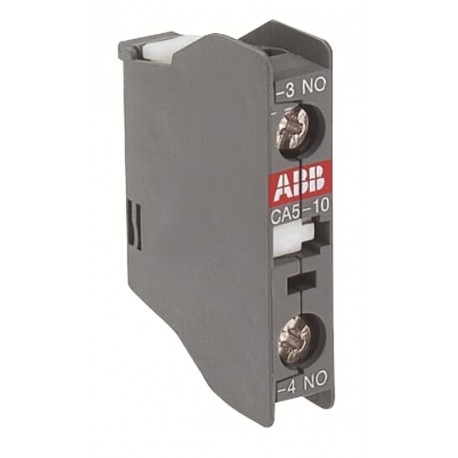

ABB 1SBN010011R1010 1SBN010011R1010 ABB CC5-10 Auxiliary Contact Block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN010011R1010 ABB CC5-10 Auxiliary Contact Block

1SBN010011R1010

010011

ABB

1 Pcs.

CC5-10 Auxiliary Contact Block CC5-10 Contact AUX. for cont.

Automation > Auxiliary contact block
"A" FRCTLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SBC101012M5501
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width9.5 mm
Product Net Depth / Length32.5 mm
Product Net Height46.8 mm
Product Net Weight0.014 kg
Technical
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC0
Number of Poles1P
Rated Operational VoltageAuxiliary Circuit 690 V
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Rated Operational Current AC-15 (Ie)(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 1 A / 72 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.30 A / 66 W
(250 V) 0.3 / 75 W
Short-Circuit Protective DevicesAuxiliary Circuit - gG Type Fuses 10 A
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 140 A
for 1 s 100 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency1200 cycles per hour
Mechanical Durability10 million
3 million
Maximum Mechanical Switching Frequency3600 cycles per hour
Minimum Switching CapacityA9 ... A75 17 / 5 VLT4K
A95 ... A110 24 / 50 VLT4K
Power Lossat Rated Operating Conditions per Pole 0.1 W
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal TypeScrew Terminals
Suitable ForAF45
AF50
AF63
AF75
A9
A12
A16
A26
A30
A40
A45
A50
A63
A75
A95
A110
AL9
AL9Z
AL12
AL12Z
AL16
AL16Z
AL26
AL30
AL40
AE45
AE50
AE63
AE75
TAL9
TAL12
TAL16
TAL26
TAL30
TAL40
TAE45
TAE50
TAE75
GA75
GAE75
UA16
UA26
UA30
UA50
UA63
UA75
UA95
UA110
UA16RA
UA26RA
UA30RA
UA50RA
UA63RA
UA75RA
UA95RA
UA110RA
UAF75RA
UAF95RA
UAF110RA
N22E
N31E
N40E
NL22E
NLZ22E
NL31E
NLZ31E
NL40E
NLZ40E
TNL22E
TNL31E
TNL40E
Product NameAuxiliary Contact Block
Remarks100
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CSA CertificateCSA_1033838
Declaration of Conformity - CE1SBD250809U1000
Declaration of Conformity - UKCA1SBD250826U1000
EAC CertificateEAC_RU C-FR ME77 B03391
GOST CertificateGOST_POCCFRME77B07175
RINA CertificateRINA_ELE172319XG001
UL CertificateUL_071301E48139
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width65 mm
Package Level 1 Depth / Length129.5 mm
Package Level 1 Height9.5 mm
Package Level 1 Gross Weight0.14 kg
Package Level 1 EAN3471522121028
External Classifications and Standards
Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39120000
E-Number (Finland)3709235

ETIM for 1SBN010011R1010 Low-voltage industrial controls and switchgear (EC000041)
Feature Name Feature Value
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 4 A
Type of electric connection (EF003961) Screw connection
Model (EF000010) Clip-on
Mounting method (EF000003) Front fastening
Lamp holder (EF000048) None
