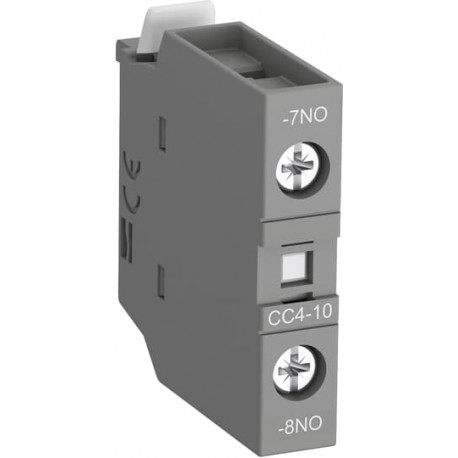

ABB 1SBN010111R1010 1SBN010111R1010 ABB CC4-10 Leading Auxiliary Contact Block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN010111R1010 ABB CC4-10 Leading Auxiliary Contact Block

1SBN010111R1010

010111

ABB

1 Pcs.

CC4-10 Leading Auxiliary Contact Block CC4-10 CONT. BLOCK AUX. ADVANCED

Automation > Auxiliary contact block
AF contactors to 38 A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SBC101041M6801
Instructions and Manuals (Part 2)1SAC200017M0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width9.9 mm
Product Net Depth / Length39.5 mm
Product Net Height43 mm
Product Net Weight0.014 kg
Technical
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC0
Number of Poles1P
StandardsIEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
Rated Operational VoltageAuxiliary Circuit 690 V
Rated Frequency (f)Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-15 (Ie)(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie)(24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 1 A / 72 W
(110 V) 0.55 A / 60 W
(125 V) 0.55 A / 69 W
(220 V) 0.27 A / 60 W
(250 V) 0.27 A / 68 W
(400 V) 0.15 A / 60 W
(500 V) 0.13 A / 65 W
(600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 140 A
for 1 s 100 A
Rated Insulation Voltage (Ui)acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Maximum Electrical Switching Frequency(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency3600 cycles per hour
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Rigid Solid 1/2x 1 ... 2.5 mm²
Rigid Stranded 1/2x 1 ... 2.5 mm²
Wire Stripping LengthAuxiliary Circuit 10 mm
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening TorqueAuxiliary Circuit 1.2 N·m
Terminal TypeScrew Terminals
Suitable ForAF09
AF09Z
AF12
AF12Z
AF16
AF16Z
AF26
AF26Z
AF30
AF30Z
AF38
AF38Z
AF40
AF52
AF65
AF80
AF96
AFC09
AFC12
AFC16
AFC26
AFC30
AFC38
NF22E
NFZ22E
NF31E
NFZ31E
NF40E
NFZ40E
NFC22E
NFC31E
NFC40E
Product NameAuxiliary Contact Block
Technical UL/CSA
Connecting Capacity Auxiliary Circuit UL/CSARigid Solid 1/2x 18-14 AWG
Rigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSAAuxiliary Circuit 11 in·lb
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
ABS CertificateABS_20-2060694-PDA
CB CertificateFR-719194
CQC CertificateCQC2011010304496319
Declaration of Conformity - CCC2020980304001258
Declaration of Conformity - CE1SBD250007U1000
Declaration of Conformity - UKCA1SBD250038U1000
GOST CertificateGOST_POCCFR.ME77.B07175.pdf
LR CertificateLRS_LR23403517TA-02
RINA CertificateRINA_ELE084013XG
UL CertificateUL-US-L252354-131-82119002-7
UL-CA-L252354-331-82119002-6
UL Listing CardUL_E252354
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width100 mm
Package Level 1 Depth / Length100 mm
Package Level 1 Height10 mm
Package Level 1 Gross Weight0.014 kg
Package Level 1 EAN3471523130425
Package Level 2 Unitsbox 100 piece
Package Level 2 Gross Weight1.4 kg
External Classifications and Standards
Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000041 - Auxiliary contact block
eClassV11.0 : 27371302
UNSPSC39121522
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
E-Number (Finland)3706504
E-Number (Sweden)3211434

ETIM for 1SBN010111R1010 Low-voltage industrial controls and switchgear (EC000041)
Feature Name Feature Value
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 4 A
Type of electric connection (EF003961) Screw connection
Model (EF000010) Clip-on
Mounting method (EF000003) Front fastening
Lamp holder (EF000048) None

Product Datasheet
