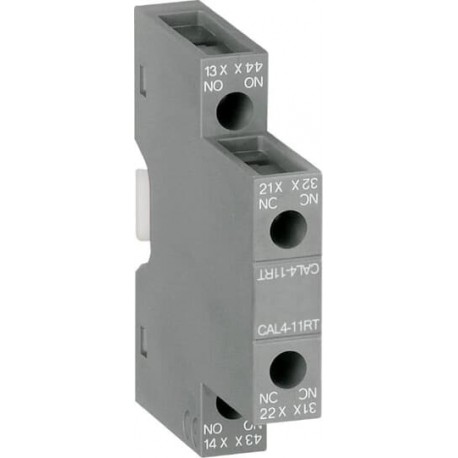

1SBN010129R1011 ABB CAL4-11RTBLOQUECONTACTOSAUX.
1SBN010129R1011
010129
ABB
1 Pcs.
Automation > Auxiliary contact block
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb cal4-11rtbloquecontactosaux. part number 1SBN010129R1011 is an auxiliary contact block configured for snap-on installation onto primary switching apparatus in electrical distribution systems. Technicians utilize these components to transmit auxiliary status signals to programmable logic controllers and remote annunciator panels. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100220C0201
- Instructions and Manuals: 1SBC101035M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 12 mm
- Product Net Depth / Length: 60 mm
- Product Net Height: 69.4 mm
- Product Net Weight: 0.04 kg
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
- Number of Poles: 2P
- Standards: IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10
- Rated Operational Voltage: Auxiliary Circuit 690 V
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100220C0201 |
| Instructions and Manuals | 1SBC101035M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 12 mm |
| Product Net Depth / Length | 60 mm |
| Product Net Height | 69.4 mm |
| Product Net Weight | 0.04 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22.2 No. 14-10 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| (690 V) 2 A | |
| (24 / 127 V) 6 A | |
| (220 / 240 V) 4 A | |
| (400 / 440 V) 3 A | |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| (48 V) 2.8 A / 134 W | |
| (72 V) 1 A / 72 W | |
| (110 V) 0.55 A / 60 W | |
| (125 V) 0.55 A / 69 W | |
| (220 V) 0.27 A / 60 W | |
| (250 V) 0.27 A / 68 W | |
| (400 V) 0.15 A / 60 W | |
| (500 V) 0.13 A / 65 W | |
| (600 V) 0.1 A / 60 W | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
| for 1 s 100 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour |
| (DC-13) 900 cycles per hour | |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Tightening Torque | Auxiliary Circuit 1.2 N·m |
| Terminal Type | Ring-Tongue Terminals |
| Suitable For | AF09B |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| NFZB22E | |
| NFB22E | |
| NFZB31E | |
| NFB31E | |
| NFZB40E | |
| NFB40E | |
| NFZB44E | |
| NFB44E | |
| NFZB62E | |
| NFB62E | |
| NFZB80E | |
| NFB80E | |
| Product Name | Auxiliary Contact Block |
| Technical UL/CSA | |
| Tightening Torque UL/CSA | Auxiliary Circuit 11 in·lb |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | FR-719194 |
| CCC Certificate | CCC_2024010305656857 |
| CCC_2024010305656311 | |
| Declaration of Conformity - CCC | 2020980304001258 |
| 2020980304001053 | |
| Declaration of Conformity - CE | 1SBD250007U1000 |
| Declaration of Conformity - UKCA | 1SBD250038U1000 |
| UR Certificate | UL_20120924-E252354-4-4 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.04 kg |
| Package Level 1 EAN | 3471523130449 |
| Package Level 2 Units | box 300 piece |
| Package Level 2 Width | 0 mm |
| Package Level 2 Depth / Length | 0 mm |
| Package Level 2 Height | 0 mm |
| Package Level 2 Gross Weight | 12 kg |
| External Classifications and Standards | |
| Object Classification Code | K |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
