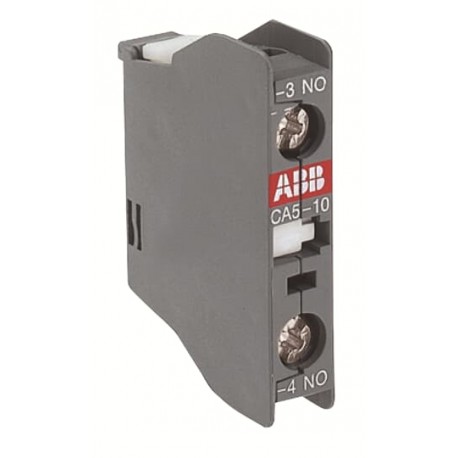

1SBN010010R1010 ABB CA5-10 Auxiliary Contact Block
1SBN010010R1010
010010
ABB
1 Pcs.
Automation > Auxiliary contact block
"A" FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB CA5-10 Auxiliary Contact Block attaches to industrial contactors to expand their low-current switching capabilities for control and signaling loops. These modular units enable electrical engineers to configure custom interlocking logic and remote status monitoring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100122C0202_Ch04
- Instructions and Manuals: 1SBC101012M5501
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 9.5 mm
- Product Net Depth / Length: 32.5 mm
- Product Net Height: 46.8 mm
- Product Net Weight: 0.143 kg
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 0
- Rated Operational Voltage: Auxiliary Circuit 690 V
- Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz
- Rated Operational Current AC-15 (I e ): (500 V) 2 A
- Short-Circuit Protective Devices: Auxiliary Circuit - gG Type Fuses 10 A
- Rated Short-time Withstand Current Low Voltage (I cw ): for 0.1 s 140 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100122C0202_Ch04 |
| Instructions and Manuals | 1SBC101012M5501 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 9.5 mm |
| Product Net Depth / Length | 32.5 mm |
| Product Net Height | 46.8 mm |
| Product Net Weight | 0.143 kg |
| Technical | |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A |
| (690 V) 2 A | |
| (24 / 127 V) 6 A | |
| (220 / 240 V) 4 A | |
| (380 / 400 V) 3 A | |
| Short-Circuit Protective Devices | Auxiliary Circuit - gG Type Fuses 10 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.1 s 140 A |
| for 1 s 100 A | |
| Maximum Electrical Switching Frequency | 1200 cycles per hour |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W |
| (48 V) 2.8 A / 134 W | |
| (72 V) 1 A / 72 W | |
| (110 V) 0.55 A / 60 W | |
| (125 V) 0.55 A / 69 W | |
| (220 V) 0.30 A / 66 W | |
| (250 V) 0.3 / 75 W | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 690 V |
| acc. to UL/CSA 600 V | |
| Mechanical Durability | 10 million |
| 3 million | |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Screw Terminals |
| Suitable For | AF45 |
| AF50 | |
| AF63 | |
| AF75 | |
| AF95B | |
| GAF75 | |
| A9 | |
| A12 | |
| A16 | |
| A26 | |
| A30 | |
| A40 | |
| A45 | |
| A50 | |
| A63 | |
| A75 | |
| A95 | |
| A110 | |
| AL9 | |
| AL9Z | |
| AL12 | |
| AL12Z | |
| AL16 | |
| AL16Z | |
| AL26 | |
| AL30 | |
| AL40 | |
| AE45 | |
| AE50 | |
| AE63 | |
| AE75 | |
| TAL9 | |
| TAL12 | |
| TAL16 | |
| TAL26 | |
| TAL30 | |
| TAL40 | |
| TAE45 | |
| TAE50 | |
| TAE75 | |
| GA75 | |
| GAE75 | |
| UA16 | |
| UA26 | |
| UA30 | |
| UA50 | |
| UA63 | |
| UA75 | |
| UA95 | |
| UA110 | |
| UA16RA | |
| UA26RA | |
| UA30RA | |
| UA50RA | |
| UA63RA | |
| UA75RA | |
| UA95RA | |
| UA110RA | |
| UAF75RA | |
| UAF95RA | |
| UAF110RA | |
| N22E | |
| N31E | |
| N40E | |
| NL22E | |
| NLZ22E | |
| NL31E | |
| NLZ31E | |
| NL40E | |
| NLZ40E | |
| TNL22E | |
| TNL31E | |
| TNL40E | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Information | 2CMT2021-006277 |
| RoHS Status | Following EU Directive 2011/65/EU |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CB Certificate | CB_SE_30112 |
| CCC Certificate | CCC_2013010304604041 |
| CCC_2004010305133985 | |
| CQC Certificate | CQC2013010304604041 |
| CQC2004010305133985 | |
| CSA Certificate | CSA_1033838 |
| Declaration of Conformity - CCC | 2020980304001626 |
| 2020980305001185 | |
| Declaration of Conformity - CE | 1SBD250809U1000 |
| Declaration of Conformity - UKCA | 1SBD250826U1000 |
| DNV GL Certificate | DNV_GL_TAE00001UT |
| EAC Certificate | EAC_RU C-FR ME77 B03391 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RINA Certificate | RINA_ELE172319XG001 |
| UL Certificate | UL_071301E48139 |
| Container Information | |
| Package Level 1 Units | 10 piece |
| Package Level 1 Width | 65 mm |
| Package Level 1 Depth / Length | 129.5 mm |
| Package Level 1 Height | 9.5 mm |
| Package Level 1 Gross Weight | 1.43 kg |
| Package Level 1 EAN | 3471522121004 |
| Package Level 2 Units | box 1000 piece |
| Package Level 2 Width | 300 mm |
| Package Level 2 Depth / Length | 245 mm |
| Package Level 2 Height | 308 mm |
| Package Level 2 Gross Weight | 143 kg |
| Package Level 3 Units | 12000 piece |
| Classifications | |
| Object Classification Code | K |
| ETIM 4 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 6 | EC000041 - Auxiliary contact block |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39121522 |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| E-Number (Finland) | 3709186 |
