View larger
Images are for illustrative purposes only. Please refer to data sheet for details

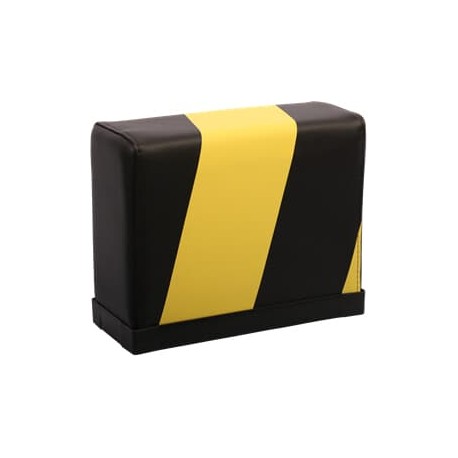

ASB 2TLA076200R0500 ABB Bumper ASB 53/100 black/yellow
ASB
2TLA076200R0500
ABB
1 Pcs.
Bumper ASB 53/100 black/yellow
ASB 60/100 B/Y Safety bumper
Automation > Pressure sensitive protective device
sensitive edges / Safety mats
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 0.15 m |
| Maximum Order Quantity | 3 m |
| Customs Tariff Number | 8536508099 |
| Product Main Type | Bumper ASB |
| Product Name | Safety bumper |
| Function | Safety bumper to prevent crushing injuries |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC010045M0201 |
| Dimensions | |
| Cable Length | 5.2 m |
| Product Net Depth / Length | 1000 mm |
| Product Net Height | 100 mm |
| Product Net Width | 60 mm |
| Product Net Weight | 1.5 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | TÜV Nord |
| UR | |
| Safety Category | 4 |
| Performance Level (PL) | Up to d |
| Technical | |
| Color | Black/Yellow |
| Connection Configuration | Depends on Bumper base price |
| Maximum Control Current DC | 10 mA |
| Overtravel | 60 mm |
| Rated Operational Voltage | 24 V DC |
| Technical Information | Actuating distance: 15% of bumper height; Maximum compression: 75% of bumper height |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Degree of Protection | IP54 |
| Material | Artificial leather |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | No certification needed |
| Declaration of Conformity - CE | 2TLC010033D0201,2TLC010036D0201 |
| Declaration of Conformity - UKCA | 2TLC010173D0201 |
| 2TLC010172D0201 | |
| TÜV Certificate | 2TLC010025D0201 |
| 2TLC010026D0201 | |
| Container Information | |
| Package Level 1 Units | 0.2 m |
| Package Level 1 Gross Weight | 1.5 kg |
| Package Level 1 EAN | 7350024461626 |
| External Classifications and Standards | |
| eClass | V11.0 : 27273590 |
| ETIM 7 | EC002887 - Pressure sensitive protective device |
| ETIM 8 | EC002887 - Pressure sensitive protective device |
| ETIM 9 | EC002887 - Pressure sensitive protective device |
| Object Classification Code | B |
