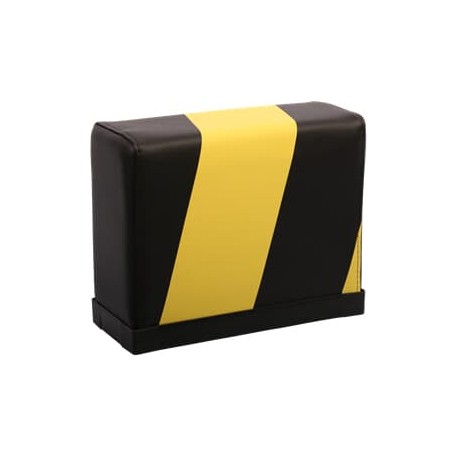

ASB 2TLA076200R0600 ABB Bumper ASB 100/200 bl./yl.
ASB
2TLA076200R0600
ABB
1 Pcs.
Automation > Pressure sensitive protective device
sensitive edges / Safety mats
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing physical impact protection around automated machinery, the ASB 2TLA076200R0600 ABB Bumper ASB 100/200 bl./yl. acts as a safety bumper to prevent crushing injuries during movement. Edge-mounted safety bumpers cushion impacts and immediately trigger stop signals when physical contact occurs on automated production lines. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 0.15 m
- Maximum Order Quantity: 3 m
- Customs Tariff Number: 8536508099
- Product Main Type: Bumper ASB
- Product Name: Safety bumper
- Function: Safety bumper to prevent crushing injuries
- Data Sheet, Technical Information: 2TLC010001C0202
- CAD Dimensional Drawing: 2CDC001079B0201
- Instructions and Manuals: 2TLC010045M0201
- Cable Length: 5.2 m
- Product Net Depth / Length: 1000 mm
- Product Net Height: 200 mm
- Product Net Width: 100 mm
- Product Net Weight: 2.5 kg
- Certification Agency: TÜV Nord
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 0.15 m |
| Maximum Order Quantity | 3 m |
| Customs Tariff Number | 8536508099 |
| Product Main Type | Bumper ASB |
| Product Name | Safety bumper |
| Function | Safety bumper to prevent crushing injuries |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC010045M0201 |
| Dimensions | |
| Cable Length | 5.2 m |
| Product Net Depth / Length | 1000 mm |
| Product Net Height | 200 mm |
| Product Net Width | 100 mm |
| Product Net Weight | 2.5 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | TÜV Nord |
| UR | |
| Safety Category | 4 |
| Performance Level (PL) | Up to d |
| Technical | |
| Color | Black/Yellow |
| Connection Configuration | Depends on Bumper base price |
| Maximum Control Current DC | 10 mA |
| Overtravel | 120 mm |
| Rated Operational Voltage | 24 V DC |
| Technical Information | Actuating distance: 15% of bumper height; Maximum compression: 75% of bumper height |
| Environmental | |
| Ambient Air Temperature | Operation 0 ... +50 °C |
| Degree of Protection | IP54 |
| Material | Artificial leather |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| CQC Certificate | No certification needed |
| Declaration of Conformity - CE | 2TLC010033D0201,2TLC010036D0201 |
| Declaration of Conformity - UKCA | 2TLC010173D0201 |
| 2TLC010172D0201 | |
| TÜV Certificate | 2TLC010025D0201 |
| 2TLC010026D0201 | |
| Container Information | |
| Package Level 1 Units | 0.2 m |
| Package Level 1 Gross Weight | 2.5 kg |
| Package Level 1 EAN | 7350024461633 |
| External Classifications and Standards | |
| eClass | V11.0 : 27273590 |
| ETIM 7 | EC002887 - Pressure sensitive protective device |
| ETIM 8 | EC002887 - Pressure sensitive protective device |
| ETIM 9 | EC002887 - Pressure sensitive protective device |
| Object Classification Code | B |
