View larger
Images are for illustrative purposes only. Please refer to data sheet for details

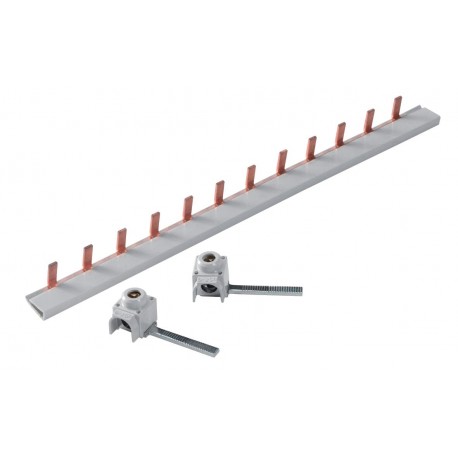

2CSL910011R1056 ABB BS9 1/56 NA Busbar
2CSL910011R1056
910011
ABB
1 Pcs.
BS9 1/56 NA - Busbar
BS9 1/56NA Bar Block
Automation > Phase busbar
Accessories range compact (ITSCE)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | SN201 |
| Suitable for Product Class | Miniature circuit breakers MCBs |
| Pitch | 44698.0 |
| Number of Poles | 56P |
| Number of Phases | 1-phase |
| Number of Mountable Devices | 56 |
| Connection Type | Pin |
| Rated Cross-Section | 10 mm² |
| Cross-Section (Across) | 10 mm² |
| Electrical | |
| Rated Operational Voltage | 400 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 25 kA |
| Rated Uninterrupted Current (Iu) | 63 A |
| Material Compliance | |
| RoHS Declaration | 2CSC400003D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| RoHS Date | 20230502 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Environmental Information | document not needed |
| Dimensions | |
| Product Net Width | 1 mm |
| Product Net Height | 15 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Weight | 140 g |
| Ordering | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Gross Weight | 1.400 kg |
| E-Number (Sweden) | 2100331 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC400003D2701 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CSC400002D0210 |
| External Classifications and Standards | |
| ETIM 9 | EC000215 - Phase busbar |
| ETIM 10 | EC000215 - Phase busbar |
| UNSPSC | 39121117 |
| eClass | V11.0 : 27371306 |
| IDEA Granular Category Code (IGCC) | 4378 >> Phase busbar |
| Object Classification Code | Q |
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 1 |
| Number of poles (EF001391) | 56 |
| Suitable for number of devices (EF007241) | 56 |
| Cross section (EF000649) | 10 mm² |
| Length (EF001438) | 10 mm |
| Rated permanent current Iu (EF001389) | 63 A |
| Type of electric connection (EF003961) | Pin |
| Insulated (EF000019) | Yes |
| Rated short-time withstand current lcw (EF007050) | 25 kA |
| Suitable for devices with N-conductor (EF007218) | No |
| Suitable for devices with auxiliary switch (EF007217) | No |
