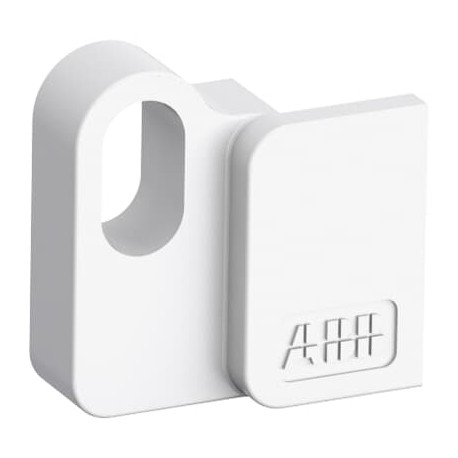

ABB 1SBN113903T1000 1SBN113903T1000 ABB BP96-4 Mounting Piece View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN113903T1000 ABB BP96-4 Mounting Piece

1SBN113903T1000

113903

ABB

10 Pcs.

BP96-4 Mounting Piece BP96-4 PIECE ADAPTATION CONT. AF-A

Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 40A to 100A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This is an Abb 1SBN113903T1000 ABB BP96-4 Mounting Piece built to facilitate secure mechanical installation within control panels.

Mounting pieces and brackets provide structural support for securing contactors, relays, and modular control gear onto standard mounting rails or backplates in industrial cabinets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 39269097
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals (Part 2): 1SAC200017M0002
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 32 mm
  • Product Net Depth / Length: 10 mm
  • Product Net Height: 45 mm
  • Product Net Weight: 0.005 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF80
  • Product Name: Mounting Piece
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number39269097
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals (Part 2)1SAC200017M0002
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width32 mm
Product Net Depth / Length10 mm
Product Net Height45 mm
Product Net Weight0.005 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF80
AF96
AFC80
AFC96
AF80B
AF96B
Product NameMounting Piece
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE1SBD250060U1000
Declaration of Conformity - UKCA1SBD250061U1000
Container Information
Package Level 1 Unitsbag 10 piece
Package Level 1 Width150 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Height20 mm
Package Level 1 Gross Weight0.05 kg
Package Level 1 EAN3471523130999
Package Level 2 Unitsbox 500 piece
Package Level 2 Gross Weight2.5 kg
External Classifications and Standards
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3707155
E-Number (Sweden)3210237
