View larger
Images are for illustrative purposes only. Please refer to data sheet for details

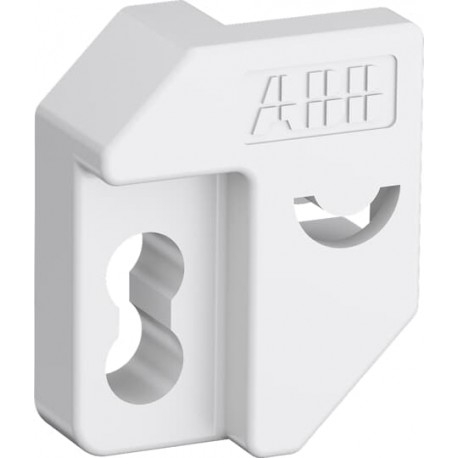

1SBN112303T1000 ABB BP38-4 Mounting Piece
1SBN112303T1000
112303
ABB
10 Pcs.
BP38-4 Mounting Piece
BP38-4 PIECE ADAPTATION CONT. AF-A
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 39269097 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 18.5 mm |
| Product Net Depth / Length | 8.9 mm |
| Product Net Height | 23 mm |
| Product Net Weight | 0.003 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| AF09B | |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| Product Name | Mounting Piece |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250060U1000 |
| Declaration of Conformity - UKCA | 1SBD250061U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| Container Information | |
| Package Level 1 Units | bag 10 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 120 mm |
| Package Level 1 Height | 9 mm |
| Package Level 1 Gross Weight | 0.03 kg |
| Package Level 1 EAN | 3471523130821 |
| Package Level 2 Units | box 500 piece |
| Package Level 2 Gross Weight | 1.5 kg |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Sweden) | 3218499 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Mounting set |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
