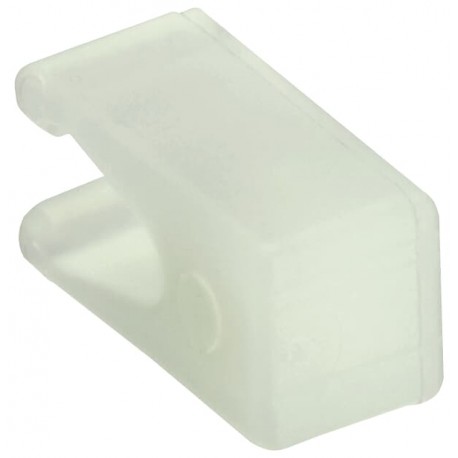

GJL1201904R0001 ABB BN6 Plunger
GJL1201904R0001
1201904
ABB
50 Pcs.
BN6 Plunger
BN6 PRINTED CIRCUIT BOARD BASE
BN6 Plunger for Mini Contactor (50 pcs) BN6 Plunger for Mini Contactor 50 pcs
Automation > Accessories/spare parts for low-voltage switch technology
Minicontactors B6-B7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is an Abb GJL1201904R0001 ABB BN6 Plunger. Plungers function as internal mechanical actuators in control relays and mini contactors, translating movement to open or close auxiliary electrical contacts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 50 piece
- Customs Tariff Number: 85389099
- EPLAN Data: 9AAC166197_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 8.5 mm
- Product Net Depth / Length: 4 mm
- Product Net Height: 4 mm
- Product Net Weight: 0.001 kg
- Rated Insulation Voltage (U i ): 690 V
- Terminal Type: No Terminals
- Suitable For: B6
- Suitable for Product Class: Mini Contactors
- Product Name: Plunger
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 50 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| EPLAN Data | 9AAC166197_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 8.5 mm |
| Product Net Depth / Length | 4 mm |
| Product Net Height | 4 mm |
| Product Net Weight | 0.001 kg |
| Technical | |
| Rated Insulation Voltage (Ui) | 690 V |
| Terminal Type | No Terminals |
| Suitable For | B6 |
| BC6 | |
| B6S | |
| B7 | |
| BC7 | |
| B7D | |
| K6 | |
| KC6 | |
| K6S | |
| Suitable for Product Class | Mini Contactors |
| Product Name | Plunger |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| ABS Certificate | NoCerNee |
| BV Certificate | NoCerNee |
| DNV Certificate | NoCerNee |
| GL Certificate | NoCerNee |
| LR Certificate | NoCerNee |
| RINA Certificate | NoCerNee |
| RMRS Certificate | NoCerNee |
| Container Information | |
| Package Level 1 Units | bag 50 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 5 mm |
| Package Level 1 Height | 80 mm |
| Package Level 1 Gross Weight | 0.055 kg |
| Package Level 1 EAN | 4013614412400 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
