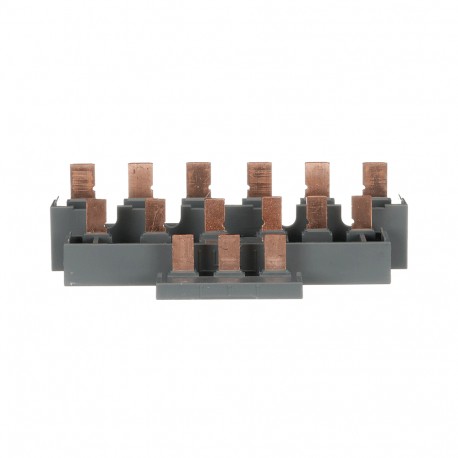

1SBN083913R2000 ABB BEY96-4 Connection Set for Star-Delta Starter
1SBN083913R2000
083913
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 40A to 100A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is an Abb 1SBN083913R2000 ABB BEY96-4 Connection Set for Star-Delta Starter created to link contactors in motor starting circuits.
Star-delta connection sets contain pre-formed busbars or wiring links that simplify the assembly of wye-delta motor starting configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101039M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 140 mm
- Product Net Depth / Length: 21.05 mm
- Product Net Height: 40 mm
- Product Net Weight: 0.25 kg
- Rated Operational Voltage: Main Circuit 1000 V AC
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Terminal Type: Screw Terminals
- Suitable For: AF80
- Product Name: Connection Set
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101039M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Depth / Length | 21.05 mm |
| Product Net Height | 40 mm |
| Product Net Weight | 0.25 kg |
| Technical | |
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 1000 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | AF80 |
| AF96 | |
| AFC80 | |
| AFC96 | |
| AFS80 | |
| AFS96 | |
| AF80B | |
| AF96B | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-L312527-152-02505102-1 |
| UL-CA-L312527-452-02505102-1 | |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.26 kg |
| Package Level 1 EAN | 3471523130975 |
| Package Level 2 Units | box 20 piece |
| Package Level 2 Gross Weight | 5.2 kg |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707153 |
| E-Number (Sweden) | 3210220 |
