View larger
Images are for illustrative purposes only. Please refer to data sheet for details

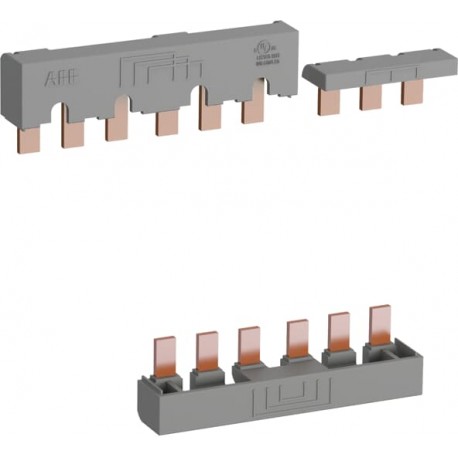

1SBN083413R2000 ABB BEY65-4 Connection Set for Star-Delta Starter
1SBN083413R2000
083413
ABB
1 Pcs.
BEY65-4 Connection Set for Star-Delta Starter
BEY65-4 EST-TRI CONNECTION BRIDGES
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 40A to 100A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101039M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 110 mm |
| Product Net Depth / Length | 20.2 mm |
| Product Net Height | 40 mm |
| Product Net Weight | 0.2 kg |
| Technical | |
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | AF40 |
| AF52 | |
| AF65 | |
| AFC40 | |
| AFC52 | |
| AFC65 | |
| AFS40 | |
| AFS52 | |
| AFS65 | |
| AF40B | |
| AF52B | |
| AF65B | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-L312527-152-02505102-1 |
| UL-CA-L312527-452-02505102-1 | |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.21 kg |
| Package Level 1 EAN | 3471523130968 |
| Package Level 2 Units | box 20 piece |
| Package Level 2 Gross Weight | 4.2 kg |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707152 |
| E-Number (Sweden) | 3210219 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Connecting bridge |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
