ABB 1SBN082813R2000 1SBN082813R2000 ABB BEY 40-2 Connection Set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN082813R2000 ABB BEY 40-2 Connection Set

1SBN082813R2000

082813

ABB

1 Pcs.

BEY 40-2 Connection Set BEY40-2 BRIDGE CONEX. ARR. EST-TRI 37kW

Automation > Accessories/spare parts for low-voltage switch technology
"A" FRCTLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

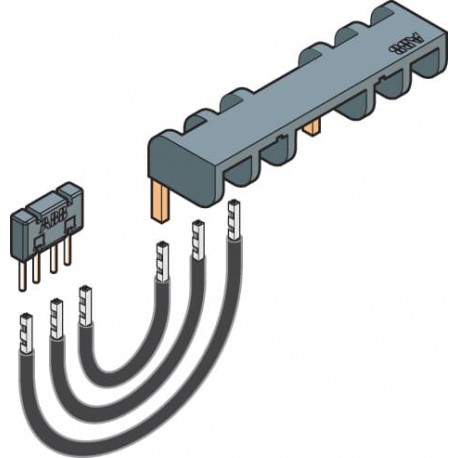

Abb part number 1SBN082813R2000 is a connection set designed to mechanically and electrically link specific contactor models within control panels. Factory-matched connection sets simplify reversing or star-delta starter assemblies by ensuring precise terminal alignment and reliable current transfer. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100122C0202_Ch04
  • Instructions and Manuals: 1SBC101016M5501
  • Product Net Width: 99 mm
  • Product Net Depth / Length: 12 mm
  • Product Net Height: 35 mm
  • Product Net Weight: 0.06 kg
  • Rated Frequency (f): Main Circuit 50 / 60 Hz
  • Terminal Type: Screw Terminals
  • Suitable For: A26
  • Product Name: Connection Set
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202; RoHS Declaration: 2CMT2021-006277
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100122C0202_Ch04
Instructions and Manuals1SBC101016M5501
Dimensions
Product Net Width99 mm
Product Net Depth / Length12 mm
Product Net Height35 mm
Product Net Weight0.06 kg
Technical
Rated Frequency (f)Main Circuit 50 / 60 Hz
Terminal TypeScrew Terminals
Suitable ForA26
A30
A40
Product NameConnection Set
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE1SBD250835U1000
Declaration of Conformity - UKCA1SBD250836U1000
GOST CertificateGOST_POCCFRME77B07175
RINA CertificateRINA_ELE172319XG001
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width150 mm
Package Level 1 Depth / Length150 mm
Package Level 1 Height20 mm
Package Level 1 Gross Weight0.06 kg
Package Level 1 EAN3471522364814
External Classifications and Standards
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39120000
