View larger
Images are for illustrative purposes only. Please refer to data sheet for details

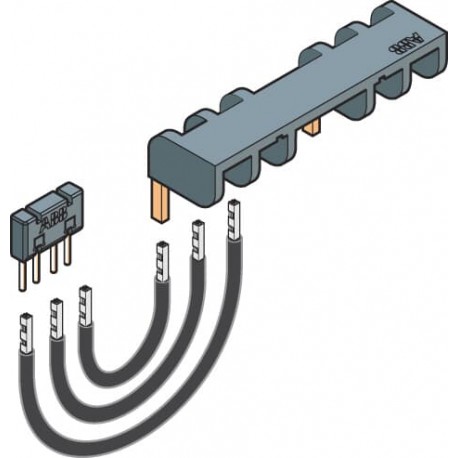

1SBN082413R2000 ABB BEY 26-2 Connection Set
1SBN082413R2000
082413
ABB
1 Pcs.
BEY 26-2 Connection Set
BEY 26-2 PUENTE CONEX. ARR. EST-TRI 22kW
Automation > Accessories/spare parts for low-voltage switch technology
"A" Classic Range
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100122C0202_Ch04 |
| Instructions and Manuals | 1SBC101016M5501 |
| Dimensions | |
| Product Net Width | 152 mm |
| Product Net Depth / Length | 9 mm |
| Product Net Height | 44 mm |
| Product Net Weight | 0.06 kg |
| Technical | |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | A16 |
| A26 | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250835U1000 |
| Declaration of Conformity - UKCA | 1SBD250836U1000 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RINA Certificate | RINA_ELE172319XG001 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.06 kg |
| Package Level 1 EAN | 3471522364791 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
