View larger
Images are for illustrative purposes only. Please refer to data sheet for details

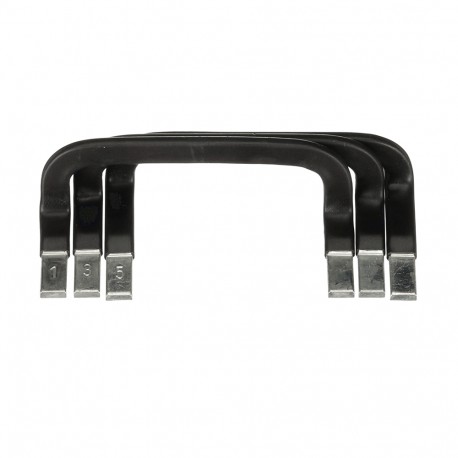

1SBN083504R1000 ABB BES75-30 Connection Set
1SBN083504R1000
083504
ABB
1 Pcs.
BES75-30 Connection Set
BES75-30 CONEXUS BRIDGE. 3P PHASE-PHASE A75
Automation > Accessories/spare parts for low-voltage switch technology
"A" FRCTLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100122C0202_Ch04 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 200 mm |
| Product Net Depth / Length | 150 mm |
| Product Net Height | 20 mm |
| Product Net Weight | 0.13 kg |
| Technical | |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | AF50 |
| AF63 | |
| AF75 | |
| A50 | |
| A63 | |
| A75 | |
| AX50 | |
| AX65 | |
| AX80 | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250835U1000 |
| Declaration of Conformity - UKCA | 1SBD250836U1000 |
| GOST Certificate | GOST_POCCFRME77B07175 |
| RINA Certificate | RINA_ELE172319XG001 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.13 kg |
| Package Level 1 EAN | 3471522199010 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Connecting bridge |
