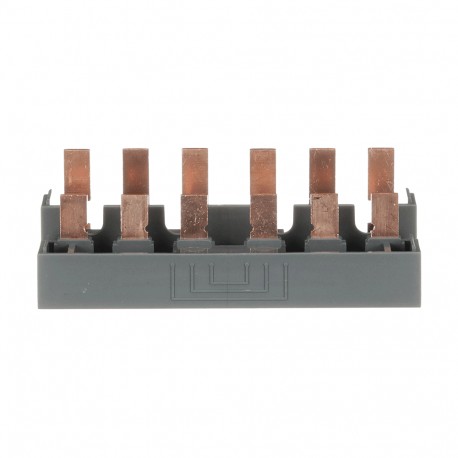

1SBN083411R1000 ABB BER65-4 Connection Set for Reversing Contactors
1SBN083411R1000
083411
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 40A to 100A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb 1SBN083411R1000 BER65-4 Connection Set for Reversing Contactors safely links power terminals between paired contactors in motor control setups. Reversing connection blocks ensure proper phase alignment and spacing for industrial motor starter assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101038M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 110 mm
- Product Net Depth / Length: 20.2 mm
- Product Net Height: 40 mm
- Product Net Weight: 0.175 kg
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Terminal Type: Screw Terminals
- Suitable For: AF40
- Product Name: Connection Set
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101038M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 110 mm |
| Product Net Depth / Length | 20.2 mm |
| Product Net Height | 40 mm |
| Product Net Weight | 0.175 kg |
| Technical | |
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60947-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | AF40 |
| AF52 | |
| AF65 | |
| AFC40 | |
| AFC52 | |
| AFC65 | |
| AFS40 | |
| AFS52 | |
| AFS65 | |
| AF40B | |
| AF52B | |
| AF65B | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-L312527-152-02505102-1 |
| UL-CA-L312527-452-02505102-1 | |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 150 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 20 mm |
| Package Level 1 Gross Weight | 0.18 kg |
| Package Level 1 EAN | 3471523130944 |
| Package Level 2 Units | box 20 piece |
| Package Level 2 Gross Weight | 3.6 kg |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3707150 |
| E-Number (Sweden) | 3210214 |
