View larger

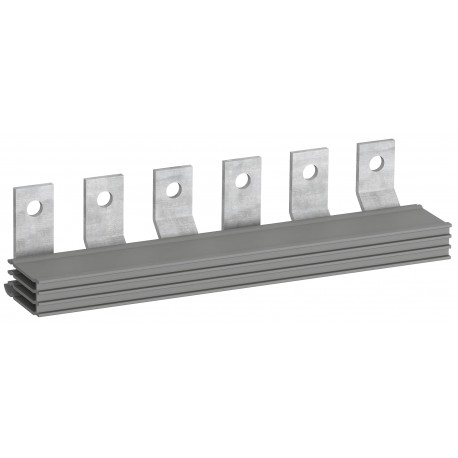

1SFN085411R1000 ABB BER370-4 Interconnection Bar
1SFN085411R1000
085411
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An interconnection bar by ABB, part number 1SFN085411R1000, functions as a heavy-duty conductive link designed to join adjacent block contactors in high-current motor control and power distribution assemblies. Busbars and connection sets streamline electrical pathways, reduce wiring complexity, and ensure secure, low-resistance bridging between switching devices.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SFC100006M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 350 mm
- Product Net Depth / Length: 36 mm
- Product Net Height: 43 mm
- Product Net Weight: 2.14 kg
- Terminal Type: Screw Terminals
- Suitable For: AF265
- Suitable for Product Class: Block Contactors
- Product Name: Connection Set
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC100006M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 350 mm |
| Product Net Depth / Length | 36 mm |
| Product Net Height | 43 mm |
| Product Net Weight | 2.14 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF265 |
| AF305 | |
| AF370 | |
| AF265B | |
| AF305B | |
| AF370B | |
| AX260 | |
| AX300 | |
| AX370 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 278 mm |
| Package Level 1 Depth / Length | 126 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Gross Weight | 2.16 kg |
| Package Level 1 EAN | 7320500494837 |
| External Classifications and Standards | |
| Object Classification Code | W |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706563 |
| E-Number (Norway) | 4188107 |
| E-Number (Sweden) | 3210218 |
