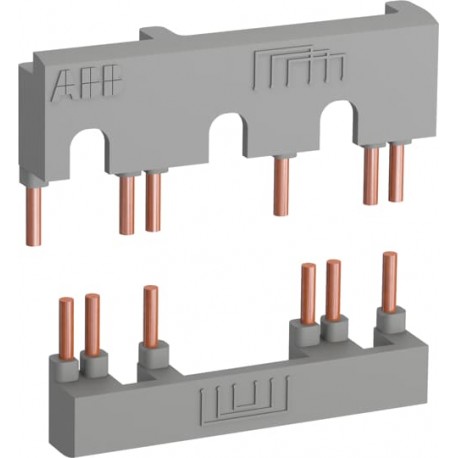

1SBN081311R1000 ABB BER16-4 Connection Set for Reversing Contactors
1SBN081311R1000
081311
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SBN081311R1000 ABB BER16-4 Connection Set for Reversing Contactors bundles mechanical and electrical linking hardware to simplify dual-contactor assembly. Such wiring kits are universally integrated into motor control centers to facilitate forward and reverse operational modes for industrial drives. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101029M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 72 mm
- Product Net Depth / Length: 14.55 mm
- Product Net Height: 33 mm
- Product Net Weight: 0.045 kg
- Standards: EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Terminal Type: Screw Terminals
- Suitable For: AF09
- Product Name: Connection Set
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101029M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 72 mm |
| Product Net Depth / Length | 14.55 mm |
| Product Net Height | 33 mm |
| Product Net Weight | 0.045 kg |
| Technical | |
| Standards | EN 60947-1, EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | AF09 |
| AF09Z | |
| AF12 | |
| AF12Z | |
| AF16 | |
| AF16Z | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFS09 | |
| AFS09Z | |
| AFS12 | |
| AFS12Z | |
| AFS16 | |
| AFS16Z | |
| AF09B | |
| AF09ZB | |
| AF12B | |
| AF12ZB | |
| AF16B | |
| AF16ZB | |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-L312527-151-12119002-5 |
| UL-CA-L312527-451-12119002-5 | |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 15 mm |
| Package Level 1 Gross Weight | 0.045 kg |
| Package Level 1 EAN | 3471523130777 |
| Package Level 2 Units | box 100 piece |
| Package Level 2 Gross Weight | 5 kg |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706558 |
| E-Number (Sweden) | 3211441 |
