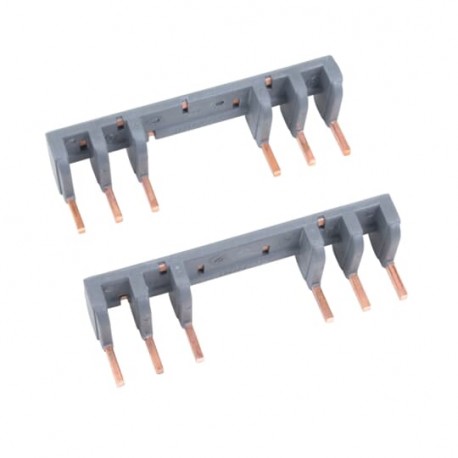

ABB 1SBN082411R1000 1SBN082411R1000 ABB BER 40V Connection Set View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN082411R1000 ABB BER 40V Connection Set

1SBN082411R1000

082411

ABB

1 Pcs.

BER 40V Connection Set BER 40V BRIDGE CONNECTION. 26-40A INVERTER

Automation > Accessories/spare parts for low-voltage switch technology
"A" Classic Range

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for electrical control setups, the 1SBN082411R1000 ABB BER 40V connection set facilitates secure mechanical and electrical linking between contactors in reversing or starter configurations. These pre-formed busbar links streamline assembly while maintaining consistent spacing in control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SBC101014M5501
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 120 mm
  • Product Net Depth / Length: 12 mm
  • Product Net Height: 36.5 mm
  • Product Net Weight: 0.085 kg
  • Rated Frequency (f): Main Circuit 50 / 60 Hz
  • Terminal Type: Screw Terminals
  • Suitable For: A26
  • Product Name: Connection Set
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SBC101014M5501
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width120 mm
Product Net Depth / Length12 mm
Product Net Height36.5 mm
Product Net Weight0.085 kg
Technical
Rated Frequency (f)Main Circuit 50 / 60 Hz
Terminal TypeScrew Terminals
Suitable ForA26
A30
A40
AL26
AL30
AL40
TAL26
TAL30
TAL40
AX32
AX40
Product NameConnection Set
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE1SBD250835U1000
Declaration of Conformity - UKCA1SBD250836U1000
GOST CertificateGOST_POCCFRME77B07175
RINA CertificateRINA_ELE172319XG001
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width185 mm
Package Level 1 Depth / Length140 mm
Package Level 1 Height10 mm
Package Level 1 Gross Weight0.085 kg
Package Level 1 EAN3471522364746
External Classifications and Standards
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39120000
