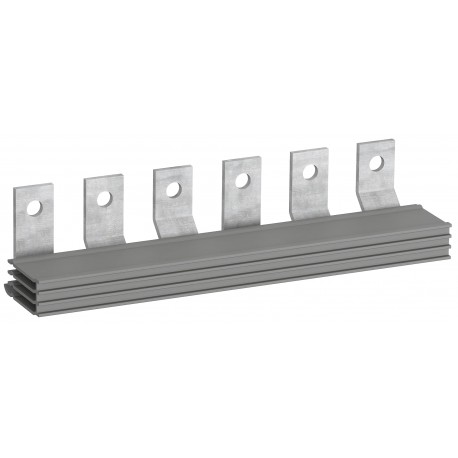

1SFN085414R1000 ABB BEP370-30 Interconnection Bar
1SFN085414R1000
085414
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SFN085414R1000 ABB BEP370-30 Interconnection Bar establishes secure electrical and mechanical pathways between heavy industrial switching devices. Interconnection links of this design are widely implemented in high-current motor control assemblies to distribute power reliably across adjacent contactor terminals.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SFC100009M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 278 mm
- Product Net Depth / Length: 63 mm
- Product Net Height: 63.8 mm
- Product Net Weight: 0.93 kg
- Terminal Type: Screw Terminals
- Suitable For: AF265
- Suitable for Product Class: Block Contactors
- Product Name: Connection Set
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SFC100009M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 278 mm |
| Product Net Depth / Length | 63 mm |
| Product Net Height | 63.8 mm |
| Product Net Weight | 0.93 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF265 |
| AF305 | |
| AF370 | |
| AX260 | |
| AX300 | |
| AX370 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 278 mm |
| Package Level 1 Depth / Length | 63.8 mm |
| Package Level 1 Height | 63 mm |
| Package Level 1 Gross Weight | 0.94 kg |
| Package Level 1 EAN | 7320500478561 |
| External Classifications and Standards | |
| Object Classification Code | W |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706565 |
| E-Number (Norway) | 4188109 |
| E-Number (Sweden) | 3210213 |
