1SFN086103R1000 ABB BED750 BRIDGE CONEX. ARR. EST-TRI

1SFN086103R1000

086103

ABB

1 Pcs.

BED750 BRIDGE CONEX. ARR. EST-TRI BED750-30 Connection Set

Automation > Accessories/spare parts for low-voltage switch technology
Contactors and overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

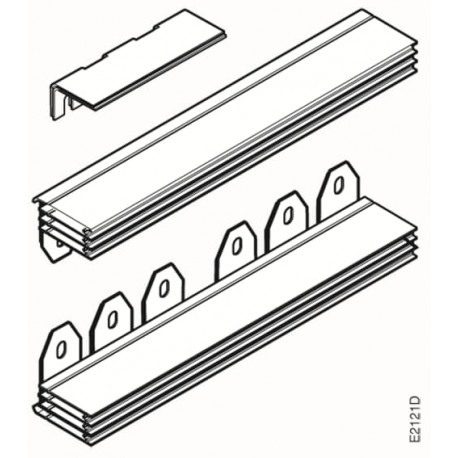

The 1SFN086103R1000 ABB BED750 BRIDGE CONEX. ARR. EST-TRI by Abb is a specialized connection bar set configured for linking high-power contactors in star-delta starter configurations. Bridge connection arrangements are deployed in heavy industrial motor control applications to manage starting current surges safely and effectively.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: N/A
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 50 mm
  • Product Net Depth / Length: 44 mm
  • Product Net Height: 456 mm
  • Product Net Weight: 7.7 kg
  • Terminal Type: Screw Terminals
  • Suitable For: AF580
  • Product Name: Connection Set
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • Toxic Substances Control Act - TSCA: 2CMT2023-006525

More info

▲
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsN/A
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width50 mm
Product Net Depth / Length44 mm
Product Net Height456 mm
Product Net Weight7.7 kg
Technical
Terminal TypeScrew Terminals
Suitable ForAF580
AF750
Product NameConnection Set
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
