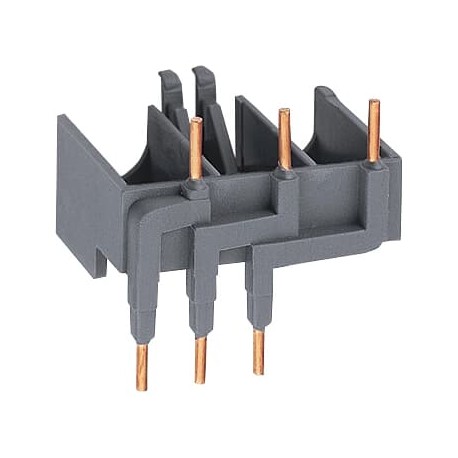

ABB 1SBN080906R1002 1SBN080906R1002 ABB BEA7/132 Connecting Link View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SBN080906R1002 ABB BEA7/132 Connecting Link

1SBN080906R1002

080906

ABB

1 Pcs.

BEA7/132 Connecting Link BEA7/132 CONEXION BRIDGE

Automation > Accessories/spare parts for low-voltage switch technology
"A" Classic Range

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB BEA7/132 Connecting Link is an engineered accessory designed to mechanically and electrically interface contactors with motor protection equipment inside control panels. Such connecting links streamline the assembly of motor starter combinations, ensuring reliable alignment and secure power transfer between modular electrical devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • EPLAN Data: 9AAC167263_EPLAN
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: FPTC407773P0001
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 45 mm
  • Product Net Depth / Length: 49 mm
  • Product Net Height: 19 mm
  • Product Net Weight: 0.013 kg
  • Terminal Type: Screw Terminals
  • Product Name: Connecting Link
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 2CMT2021-006202
  • RoHS Declaration: 2CMT2021-006277
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Popular Downloads
EPLAN Data9AAC167263_EPLAN
Data Sheet, Technical Information1SBC100214C0202
Instructions and ManualsFPTC407773P0001
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width45 mm
Product Net Depth / Length49 mm
Product Net Height19 mm
Product Net Weight0.013 kg
Technical
Terminal TypeScrew Terminals
Product NameConnecting Link
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA2CMT2023-006525
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
Declaration of Conformity - CE1SBD250835U1000
Declaration of Conformity - UKCA1SBD250836U1000
GOST CertificateGOST_POCCFRME77B07175
Container Information
Package Level 1 Unitsbox 10 piece
Package Level 1 Width100 mm
Package Level 1 Depth / Length200 mm
Package Level 1 Height70 mm
Package Level 1 Gross Weight0.13 kg
Package Level 1 EAN3471522364975
External Classifications and Standards
ETIM 7EC002498 - Accessories for low-voltage switch technology
ETIM 8EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
E-Number (Finland)3706047
