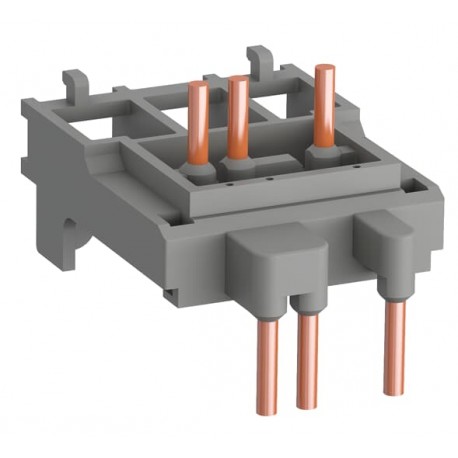

1SBN082306T1000 ABB BEA26-4 Connecting Link with Manual Motor Starter
1SBN082306T1000
082306
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors to 38 A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb BEA26-4 Connecting Link with Manual Motor Starter (1SBN082306T1000) provides mechanical and electrical connection between motor control components, ensuring seamless integration in motor starter combinations. Such connecting links are commonly deployed in industrial control panels to streamline wiring, secure modular grouping, and maintain robust continuity across starter assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 10 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: 1SBC101030M6801
- Instructions and Manuals (Part 2): 1SAC200017M0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 45 mm
- Product Net Depth / Length: 48 mm
- Product Net Height: 41.8 mm
- Product Net Weight: 0.025 kg
- Standards: UL 60947-4-1, CSA C22.2 No. 60947-4-1
- Rated Operational Voltage: Main Circuit 690 V AC
- Rated Frequency (f): Main Circuit 50 / 60 Hz
- Terminal Type: Screw Terminals
- Suitable For: MO132
- Product Name: Connecting Link
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | 1SBC101030M6801 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 45 mm |
| Product Net Depth / Length | 48 mm |
| Product Net Height | 41.8 mm |
| Product Net Weight | 0.025 kg |
| Technical | |
| Standards | UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | MO132 |
| MS116 | |
| MS132 | |
| AF26 | |
| AF26Z | |
| AF30 | |
| AF30Z | |
| AF38 | |
| AF38Z | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| AFS26 | |
| AFS26Z | |
| AFS30 | |
| AFS30Z | |
| AFS38 | |
| AFS38Z | |
| MS132B | |
| AF26B | |
| AF26ZB | |
| AF30B | |
| AF30ZB | |
| AF38B | |
| AF38ZB | |
| Product Name | Connecting Link |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SBD250021U1000 |
| Declaration of Conformity - UKCA | 1SBD250043U1000 |
| GOST Certificate | GOST_POCCFR.ME77.B07175.pdf |
| RINA Certificate | RINA_ELE084013XG |
| UL Certificate | UL-US-L312527-151-12119002-5 |
| UL-CA-L312527-451-12119002-5 | |
| UL Listing Card | UL_E312527 |
| Container Information | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 187 mm |
| Package Level 1 Height | 64 mm |
| Package Level 1 Gross Weight | 0.25 kg |
| Package Level 1 EAN | 3471523130746 |
| External Classifications and Standards | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3705822 |
| E-Number (Sweden) | 3211493 |
