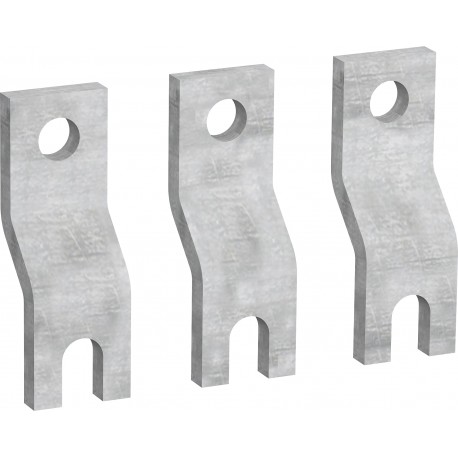

1SFN084806R1000 ABB BEA205/XT4 Interconnection Bar
1SFN084806R1000
084806
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SFN084806R1000 BEA205/XT4 interconnection bar links industrial block contactors directly with molded case circuit breakers, streamlining heavy power busbar arrangements. Interconnection bars save panel space and eliminate complex wiring fabrication during heavy motor starter assembly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Data Sheet, Technical Information: 1SBC100214C0202
- Instructions and Manuals: N/A
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 20 mm
- Product Net Depth / Length: 16.5 mm
- Product Net Height: 58.52 mm
- Product Net Weight: 0.2 kg
- Terminal Type: Screw Terminals
- Suitable For: AF190
- Suitable for Product Class: Block Contactors
- Product Name: Connection Set
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 2CMT2021-006202
- RoHS Declaration: 2CMT2021-006277
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Instructions and Manuals | N/A |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 20 mm |
| Product Net Depth / Length | 16.5 mm |
| Product Net Height | 58.52 mm |
| Product Net Weight | 0.2 kg |
| Technical | |
| Terminal Type | Screw Terminals |
| Suitable For | AF190 |
| AF205 | |
| XT4 | |
| Suitable for Product Class | Block Contactors |
| Product Name | Connection Set |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 20120925-E36588 |
| Declaration of Conformity - CE | 2CMT004895 |
| Declaration of Conformity - UKCA | 2CMT2020-006120 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 60 mm |
| Package Level 1 Depth / Length | 58.52 mm |
| Package Level 1 Height | 16.5 mm |
| Package Level 1 Gross Weight | 0.215 kg |
| Package Level 1 EAN | 7320500481301 |
| External Classifications and Standards | |
| Object Classification Code | W |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| E-Number (Finland) | 3706544 |
| E-Number (Norway) | 4117895 |
| E-Number (Sweden) | 3210228 |
