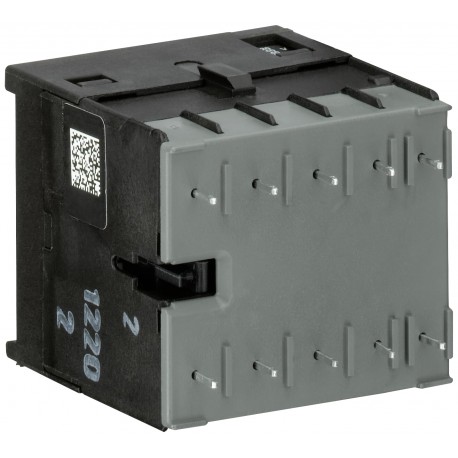

GJL1313009R0101 ABB BC7-30-10-P-01 Mini Contactor 24VDC

GJL1313009R0101

1313009

ABB

1 Pcs.

BC7-30-10-P-01 Mini Contactor 24VDC BC7-30-10P MINICONT. 24Vdc BC7-30-10-P-01 Mini Contactor 24 V DC - 3 NO - 0 NC - Solder Pins

Automation > Power contactor, AC switching
Minicontactors B6-B7

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb GJL1313009R0101 mini contactor is a compact electromagnetic switching device deployed when space is constrained inside control cabinets and smaller machinery. It provides reliable remote management for fractional horsepower motors and auxiliary control circuits in automation systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • GJL1201319R0002: CA6-11E-P Auxiliary Contact
  • GJL1201319R0003: CA6-11M-P
  • GJL1201319R0004: CA6-11N-P
  • Rated control supply voltage DC: 24 V
  • Voltage type for actuating: DC
  • Rated operation current Ie at AC-1, 400 V: 12 A
  • Rated operation current Ie at AC-3, 400 V: 12 A
  • Rated operation power at AC-3, 400 V: 5.5 kW
  • Rated operation power NEMA: 2.2371 kW
  • Modular version: No
  • Type of electrical connection of main circuit: PCB connection
  • Number of normally open contacts as main contact: 3

More info

▲

The BC7-30-10-P mini contactor is a compact 3 pole contactor with 1 auxiliary contact and soldering pins. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil and a switch position indication.

+
–

Accessories

IdentifierDescriptionTypeQtyUnit Of Measure
GJL1201319R0002
CA6-11E-P Auxiliary ContactCA6-11E-P1piece
GJL1201319R0003
CA6-11M-PCA6-11M-P Auxiliary Contact1piece
GJL1201319R0004
CA6-11N-PCA6-11N-P Auxiliary Contact1piece

Ordering

  • EAN:
    4013614157448
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Dimensions

  • Product Net Width:
    47.5mm
  • Product Net Height:
    45.5mm
  • Product Net Depth:
    51.5mm
  • Product Net Weight:
    0.17kg

Container Information

  • Package Level 1 Units:
    10 piece
  • Package Level 1 Width:
    108 mm
  • Package Level 1 Height:
    69 mm
  • Package Level 1 Length:
    247 mm
  • Package Level 1 Gross Weight:
    1.775 kg
  • Package Level 1 EAN:
    4013614418686

Technical

  • Number of Poles:
    4
  • Mini Contactor Type:
    Mini Contactor
  • Rated Operational Voltage:
    Auxiliary Circuit 12 ... 240 V DC
    Auxiliary Circuit 12 ... 500 V AC/DC
    Main Circuit 12 ... 690 V AC/DC
    Main Circuit 690 V AC
  • Rated Frequency (f):
    Control Circuit DC
    Main Circuit 60 Hz
    Main Circuit 50 Hz
    Main Circuit DC
  • Rated Impulse Withstand Voltage (Uimp):
    Auxiliary Circuit 6 kV
    Main Circuit 6 kV
  • Rated Insulation Voltage (Ui):
    690 V
    acc. to UL/CSA 600 V
  • Number of Main Contacts NC:
    0
  • Number of Main Contacts NO:
    3
  • Rated Operational Current AC-1 (Ie):
    (220 / 240 V) 40 °C 12 A
    (220 / 240 V) 55 °C 12 A
    (380 / 440 V) 40 °C 12 A
    (380 / 440 V) 55 °C 12 A
    (690 V) 40 °C 6 A
    (690 V) 55 °C 6 A
  • Rated Operational Power AC-3 (Pe):
    (220 / 230 / 240 V) 3 kW
    (400 V) 5.5 kW
    (400 V) Three Phase 5.5 kW
    (440 V) 5.5 kW
    (500 V) 5.5 kW
    (690 V) 3 kW
  • Rated Short-time Withstand Current (Icw):
    at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
  • Number of Auxiliary Contacts NC:
    0
  • Number of Auxiliary Contacts NO:
    1
  • Rated Operational Current AC-15 (Ie):
    (120 V) 4 A
    (220 / 240 V) 4 A
    (24 V) 4 A
    (380 / 400 V) 3 A
    (500 V) 2 A
  • Rated Operational Current DC-13 (Ie):
    (110 V) 0.7 A
    (220 / 240 V) 0.4 A
    (24 V) 2.5 A
  • Conventional Free-air Thermal Current (Ith):
    Main Circuit 12 A
  • Rated Control Circuit Voltage (Uc):
    24 V DC
  • Coil Operating Limits:
    (acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
  • Degree of Protection:
    Auxiliary Circuit Terminals IP20
    Control Circuit Terminals IP20
    Main Circuit Terminals IP20
  • Mechanical Durability:
    10000000 cycle
  • Minimum Switching Capacity:
    17 V
    5 mA
  • Maximum Electrical Switching Frequency:
    AC-1 300 cycles per hour
    AC-15 600 cycles per hour
    AC-3 600 cycles per hour
    DC-1 600 cycles per hour
    DC-13 600 cycles per hour
    DC-3 600 cycles per hour
  • Mounting on DIN Rail:
    TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
    TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • Power Loss:
    at Rated Operating Conditions per Pole 2 W
  • Standards:
    IEC/EN 60947-1
    IEC/EN 60947-4-1
    IEC/EN 60947-5-1
    UL 60947-1
    UL 60947-4-1

Environmental

  • Ambient Air Temperature:
    Operation -25 ... +55 °C
    Storage -40 ... +80 °C
  • Maximum Operating Altitude Permissible:
    2000 m
  • Resistance to Shock acc. to IEC 60068-2-27:
    11 ms Pulse 15g
  • Resistance to Vibrations acc. to IEC 60068-2-6:
    5g / 5 ... 150 Hz
  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA:
    Main Circuit 600 V AC
  • Full Load Amps Motor Use:
    (240 V AC) Single Phase 10 A
    (440 ... 480 V AC) Three Phase 7.6 A
  • Horsepower Rating UL/CSA:
    (208 V AC) Three Phase 3 Hp
    (220 ... 240 V AC) Single Phase 1.5 Hp
    (220 ... 240 V AC) Three Phase 3 Hp
    (440 ... 480 V AC) Three Phase 5 Hp
    (550 ... 600 V AC) Three Phase 5 Hp
  • General Use Rating UL/CSA:
    (600 V AC) 16 A

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    Q
  • eClass:
    7.0 27371003
  • ETIM 4:
    EC000066 - Magnet contactor, AC-switching
  • ETIM 5:
    EC000066 - Magnet contactor, AC-switching
  • UNSPSC:
    39121529

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
