View larger
Images are for illustrative purposes only. Please refer to data sheet for details

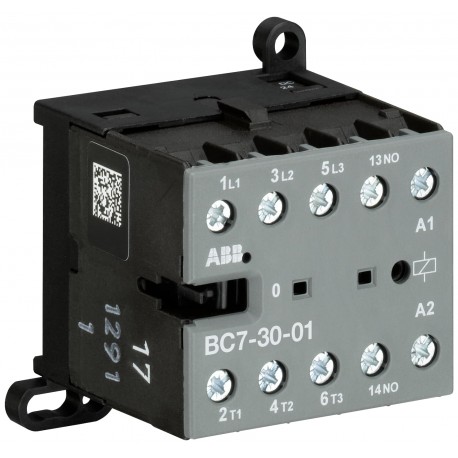

GJL1313001R0101 ABB BC7-30-10-01 Mini Contactor 24VDC
GJL1313001R0101
1313001
ABB
1 Pcs.
BC7-30-10-01 Mini Contactor 24VDC
BC73010 MINICONT. 24V CC TOR
BC7-30-10-01 Mini Contactors 24 V DC - 3 NO - 0 NC - Screw Terminals
Automation > Power contactor, AC switching
Minicontactors B6-B7
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The BC7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 5.5 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting.
+
–
Accessories
| Identifier | Type | Description | Qty | Unit Of Measure |
|---|---|---|---|---|
| GJL1201317R0002 | CA6-11E | CA6-11E Auxiliary Contact | 1 | piece |
| GJL1201317R0003 | CA6-11M | CA6-11M Auxiliary Contact | 1 | piece |
| GJL1201317R0004 | CA6-11N | CA6-11N Auxiliary Contact | 1 | piece |
| GJL1201330R0002 | CAF6-11E Auxiliary Contact | CAF6-11E | 1 | piece |
| GJL1201330R0003 | CAF6-11M | CAF6-11M Auxiliary Contact | 1 | piece |
| GJL1201330R0004 | CAF6-11N | CAF6-11N Auxiliary Contact | 1 | piece |
| GJL1201330R0006 | CAF6-20E Auxiliary Contact | CAF6-20E | 1 | piece |
| GJL1201330R0007 | CAF6-20M | CAF6-20M Auxiliary Contact | 1 | piece |
| GJL1201330R0008 | CAF6-20N Auxiliary Contact | CAF6-20N | 1 | piece |
| GJL1201330R0010 | CAF6-02E | CAF6-02E Auxiliary Contact | 1 | piece |
| GJL1201330R0011 | CAF6-02M | CAF6-02M Auxiliary Contact | 1 | piece |
| GJL1201330R0012 | CAF6-02N | CAF6-02N Auxiliary Contact | 1 | piece |
| GJL1201904R0001 | BN6 Plunger | BN6 | 1 | piece |
| GJL1201906R0001 | LT6-B Cover Cap | LT6-B | 1 | piece |
| GJL1201907R0001 | LP6 Connecting Link | LP6 | 1 | piece |
Ordering
- EAN:
- 4013614150159
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Dimensions
- Product Net Width:
- 52.5mm
- Product Net Height:
- 57.5mm
- Product Net Depth:
- 46.5mm
- Product Net Weight:
- 0.175kg
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 115 mm
- Package Level 1 Height:
- 54 mm
- Package Level 1 Length:
- 280 mm
- Package Level 1 Gross Weight:
- 1.82 kg
- Package Level 1 EAN:
- 4013614418242
Technical
- Number of Poles:
- 4
- Mini Contactor Type:
- Mini Contactor
- Rated Operational Voltage:
- Auxiliary Circuit 12 ... 240 V DC
Auxiliary Circuit 12 ... 500 V AC/DC
Main Circuit 12 ... 690 V AC/DC
Main Circuit 690 V AC
- Rated Frequency (f):
- Control Circuit DC
Main Circuit 60 Hz
Main Circuit 50 Hz
Main Circuit DC
- Rated Impulse Withstand Voltage (Uimp):
- Auxiliary Circuit 6 kV
Main Circuit 6 kV
- Rated Insulation Voltage (Ui):
- 690 V
acc. to UL/CSA 600 V
- Number of Main Contacts NC:
- 0
- Number of Main Contacts NO:
- 3
- Rated Operational Current AC-1 (Ie):
- (220 / 240 V) 40 °C 20 A
(220 / 240 V) 55 °C 16 A
(380 / 440 V) 40 °C 20 A
(380 / 440 V) 55 °C 16 A
(690 V) 40 °C 6 A
(690 V) 55 °C 6 A
- Rated Operational Power AC-3 (Pe):
- (220 / 230 / 240 V) 3 kW
(400 V) 5.5 kW
(400 V) Three Phase 5.5 kW
(440 V) 5.5 kW
(500 V) 5.5 kW
(690 V) 3 kW
- Rated Short-time Withstand Current (Icw):
- at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 96 A
- Number of Auxiliary Contacts NC:
- 0
- Number of Auxiliary Contacts NO:
- 1
- Rated Operational Current AC-15 (Ie):
- (120 V) 4 A
(220 / 240 V) 4 A
(24 V) 4 A
(380 / 400 V) 3 A
(500 V) 2 A
- Rated Operational Current DC-13 (Ie):
- (110 V) 0.7 A
(220 / 240 V) 0.4 A
(24 V) 2.5 A
- Conventional Free-air Thermal Current (Ith):
- Main Circuit 20 A
- Rated Control Circuit Voltage (Uc):
- 24 V DC
- Coil Operating Limits:
- (acc. to IEC 60947-4-1) for DC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C)
- Degree of Protection:
- Auxiliary Circuit Terminals IP20
Control Circuit Terminals IP20
Main Circuit Terminals IP20
- Mechanical Durability:
- 10000000 cycle
- Minimum Switching Capacity:
- 17 V
5 mA
- Maximum Electrical Switching Frequency:
- AC-1 300 cycles per hour
AC-15 600 cycles per hour
AC-3 600 cycles per hour
DC-1 600 cycles per hour
DC-13 600 cycles per hour
DC-3 600 cycles per hour
- Connecting Capacity-Main Circuit:
- Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
- Connecting Capacity-Auxiliary Circuit:
- Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
- Connecting Capacity-Control Circuit:
- Flexible with Ferrule 1/2x 1 ... 2.5 mm²
Flexible with Insulated Ferrule 1/2x 1 ... 2.5 mm²
Flexible 1/2x 1 ... 2.5 mm²
Rigid 1/2x 1 ... 4 mm²
- Wire Stripping Length:
- Auxiliary Circuit 9 mm
Main Circuit 9 mm
- Tightening Torque:
- Auxiliary Circuit 0.8 ... 1.1 N·m
Control Circuit 0.8 ... 1.1 N·m
Main Circuit 0.8 ... 1.1 N·m
- Mounting on DIN Rail:
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Power Loss:
- at Rated Operating Conditions per Pole 2 W
- Standards:
- IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1
Environmental
- Ambient Air Temperature:
- Operation -25 ... +55 °C
Storage -40 ... +80 °C
- Maximum Operating Altitude Permissible:
- 2000 m
- Resistance to Shock acc. to IEC 60068-2-27:
- 11 ms Pulse 15g
- Resistance to Vibrations acc. to IEC 60068-2-6:
- 5g / 5 ... 150 Hz
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- Main Circuit 600 V AC
- Full Load Amps Motor Use:
- (240 V AC) Single Phase 10 A
(440 ... 480 V AC) Three Phase 7.6 A
- Horsepower Rating UL/CSA:
- (208 V AC) Three Phase 3 Hp
(220 ... 240 V AC) Single Phase 1.5 Hp
(220 ... 240 V AC) Three Phase 3 Hp
(440 ... 480 V AC) Three Phase 5 Hp
(550 ... 600 V AC) Three Phase 5 Hp
- General Use Rating UL/CSA:
- (600 V AC) 16 A
- Connecting Capacity Main Circuit UL/CSA:
- Stranded 1/2x 22 ... 10 AWG
- Connecting Capacity Auxiliary Circuit UL/CSA:
- Stranded 1/2x 22 ... 10 AWG
- Tightening Torque UL/CSA:
- Auxiliary Circuit 7 in·lb
Control Circuit 7 in·lb
Main Circuit 7 in·lb
Certificates and Declarations (Document Number)
- BV Certificate:
- 1SAA938000-0203
- CB Certificate:
- 1SAA938000-2002
- CCC Certificate:
- 1SAA938001-3804
- cUL Certificate:
- 1SAA938003-1701
- Declaration of Conformity - CE:
- 1SAD938510-0001
- DNV Certificate:
- 1SAA938000-0305
- EAC Certificate:
- 1SAA920000-2702
- GL Certificate:
- 1SAA938000-0403
- LR Certificate:
- 1SAA938000-0503
- RMRS Certificate:
- 1SAA938000-0703
- RoHS Information:
- 1SAA938003-4403
- UL Certificate:
- 1SAA938000-1604
Classifications
- Object Classification Code:
- Q
- eClass:
- 7.0 27371003
- ETIM 4:
- EC000066 - Magnet contactor, AC-switching
- ETIM 5:
- EC000066 - Magnet contactor, AC-switching
- UNSPSC:
- 39121529
- E-nummer:
- 3210076
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 12 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
| Rated operation power NEMA (EF011960) | 2.2371 kW |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
