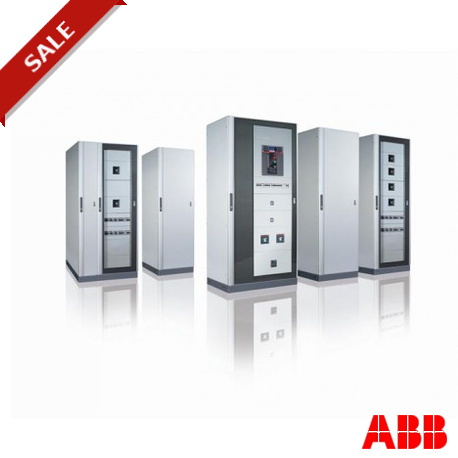

ABB ED2332 ED2332 ABB BASE MODULES L1 BOTTOM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ED2332 ABB BASE MODULES L1 BOTTOM

ED2332

ED2332

ABB

1 unit


Automation > e-mobility
System Pro E Power Distribution Systems

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ensuring clean separation of electrical phases in large industrial switchboards is simplified with the Abb ED2332 base module. These structural accessories provide robust mounting foundations for internal busbar and terminal setups. Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • RoHS Status: Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01
  • Order Multiple: 1 piece
  • Product Main Type: ArTu K Modular Structures
  • Product Name: Main Distribution Board
  • Suitable for Product Class: Main Distribution Board, Cabinet
  • Data Sheet, Technical Information: 1STC008001D0203
  • RoHS Information: 1STC860027
  • Product Net Weight: 2.880 kg
  • EAN: 8015646612762
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85381000
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 0.065 m
  • Package Level 1 Height: 0.040 m
  • Package Level 1 Length: 0.202 m
  • Package Level 1 Gross Weight: 0.250 kg

More info

▲

Basic modules L1 bottom

Ordering

  • EAN:
    8015646612762
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85381000

Dimensions

  • Product Net Weight:
    2.880kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.065 m
  • Package Level 1 Height:
    0.040 m
  • Package Level 1 Length:
    0.202 m
  • Package Level 1 Gross Weight:
    0.250 kg
  • Package Level 1 EAN:
    8015646612762

Environmental

  • RoHS Status:
    Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07-01

Additional Information

  • Order Multiple:
    1 piece
  • Product Main Type:
    ArTu K Modular Structures
  • Product Name:
    Main Distribution Board
  • Suitable For:
    ArTu L Modular Structures, ArTu M Monobloc Structures, ArTu K Modular Structures, Modular Boards - System pro E power
  • Suitable for Product Class:
    Main Distribution Board, Cabinet

Certificates and Declarations (Document Number)

Classifications

  • ETIM 4:
    EC000261 - Switchgear cabinet (empty)
  • ETIM 5:
    EC000261 - Switchgear cabinet (empty)
  • Object Classification Code:
    U
