ABB 1SFN010720R1011 1SFN010720R1011 ABB AUX. CONTACT CAL18-11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFN010720R1011 ABB AUX. CONTACT CAL18-11

1SFN010720R1011

010720

ABB

1 Pcs.

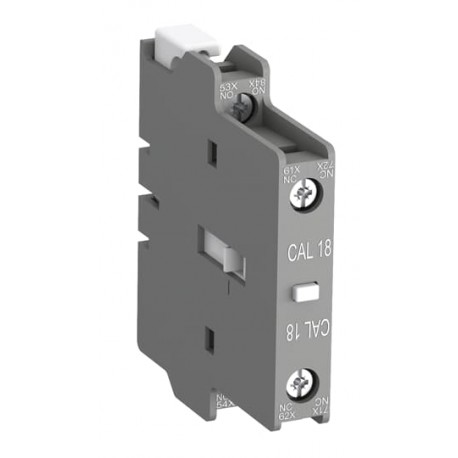

AUX. CONTACT#CAL18-11 CAL18-11 Contact AUX. LAT. 1NA+1NC CAL18-11 Auxiliary Contact Block

Automation > Auxiliary contact block
"A" SECRLP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SFN010720R1011 ABB AUX. CONTACT CAL18-11 is an auxiliary contact block utilized in motor control centers and heavy-duty contactor assemblies to relay switching status information to control logic systems. These modular blocks mechanically couple with main switching devices to expand electrical feedback capabilities in automated industrial processes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Minimum Order Quantity: 2 piece
  • Customs Tariff Number: 85369010
  • Data Sheet, Technical Information: 1SBC100214C0202
  • Instructions and Manuals: 1SFC101009M5501
  • CAD Dimensional Drawing: 2CDC001079B0201
  • Product Net Width: 64.5 mm
  • Product Net Depth / Length: 17.1 mm
  • Product Net Height: 74 mm
  • Product Net Weight: 0.04 kg
  • Number of Auxiliary Contacts NO: 1
  • Number of Auxiliary Contacts NC: 1
  • Rated Operational Voltage: Auxiliary Circuit 24 ... 690 V
  • Power Loss: at Rated Operating Conditions per Pole 0.15 W
  • Connecting Capacity Auxiliary Circuit: Flexible with Ferrule 1x 0.75 ... 2.5 mm²
  • Wire Stripping Length: Auxiliary Circuit 9 mm
  • Degree of Protection: IP20

More info

▲
Ordering
Minimum Order Quantity2 piece
Customs Tariff Number85369010
Popular Downloads
Data Sheet, Technical Information1SBC100214C0202
Instructions and Manuals1SFC101009M5501
CAD Dimensional Drawing2CDC001079B0201
Dimensions
Product Net Width64.5 mm
Product Net Depth / Length17.1 mm
Product Net Height74 mm
Product Net Weight0.04 kg
Technical
Number of Auxiliary Contacts NO1
Number of Auxiliary Contacts NC1
Rated Operational VoltageAuxiliary Circuit 24 ... 690 V
Power Lossat Rated Operating Conditions per Pole 0.15 W
Connecting Capacity Auxiliary CircuitFlexible with Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Ferrule 2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²
Solid 1x 1 ... 4 mm²
Solid 2x 1 ... 4 mm²
Wire Stripping LengthAuxiliary Circuit 9 mm
Degree of ProtectionIP20
Recommended Screw DriverAuxiliary Circuit 1 x 5.5
Auxiliary Circuit Pozidriv 2
Tightening TorqueAuxiliary Circuit 1 N·m
Terminal TypeScrew Terminals
Suitable ForAF400
AF460
AF580
AF750
AF1250
AF1350
AF1650
AF2050
AF2650
AF2850
AF95B
GAF185
GAF300
GAF460
GAF750
GAF1250
GAF1650
GAF2050
A95
A110
A145
A185
A210
A260
A300
UA95
UA110
AF95
AF110
AF145
AF185
AF210
AF260
AF300
Suitable for Product ClassBlock Contactors
Product NameAuxiliary Contact Block
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2021-006202
RoHS Declaration2CMT2021-006277
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateSE-85989
CQC CertificateCQC2003010304088244
CQC2009010304365509
Declaration of Conformity - CCC2020980304001307
2020980304001060
Declaration of Conformity - CE2CMT2015-005448
Declaration of Conformity - UKCA2CMT2020-006119
UL Certificate20160916-E76003
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width64.5 mm
Package Level 1 Depth / Length74 mm
Package Level 1 Height17.1 mm
Package Level 1 Gross Weight0.05 kg
Package Level 1 EAN7320500256305
External Classifications and Standards
Object Classification CodeK
ETIM 7EC000041 - Auxiliary contact block
ETIM 8EC000041 - Auxiliary contact block
ETIM 9EC000066 - Power contactor, AC switching
eClassV11.0 : 27371003
UNSPSC39121522
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
E-Number (Finland)3709263
E-Number (Norway)4116022
E-Number (Sweden)3228821
