View larger

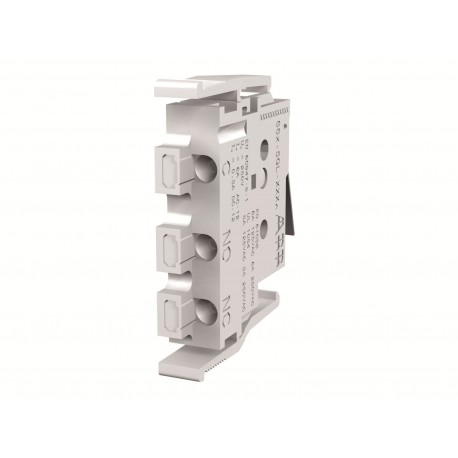

1SDA066426R1 ABB AUX-C 3Q L 250Vac/dc XT1
1SDA066426R1
066426
ABB
1 Pcs.
Automation > Auxiliary contact block
Accessories XT1-4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA066426R1 AUX-C 3Q L auxiliary contact assembly is built for low-voltage circuit breakers to supply reliable position feedback and alarm signaling in industrial power systems. These internal modules integrate smoothly into electrical distribution networks to support interlocking and diagnostic functions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: KXT1AXC3QL
- E-Number (Finland): 3642157
- EAN: 8015644692667
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.121 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 110 mm
- Package Level 1 Height: 60 mm
- Package Level 1 Depth / Length: 140 mm
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | KXT1AXC3QL |
| E-Number (Finland) | 3642157 |
| EAN | 8015644692667 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.121 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 110 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 140 mm |
| Package Level 1 Gross Weight | 0.127 kg |
| Package Level 1 EAN | 8015644692667 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Number of Auxiliary Contacts CO (SPDT) | 3 |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC60947-2 |
| UL489 | |
| Suitable For | XT1 |
| Suitable for Product Class | SACE Tmax XT |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210100D0205 |
| 1SDC210099D0205 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000719R0616 |
| Classifications | |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| IDEA Granular Category Code (IGCC) | 4743 >> Auxiliary contact block |
| Object Classification Code | Q |
| UNSPSC | 39121522 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371302 |
