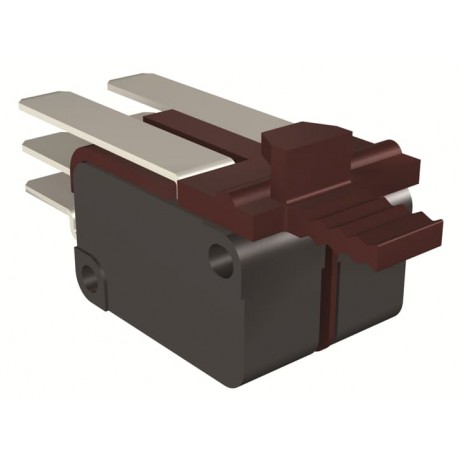

ABB 1SDA073751R1 1SDA073751R1 ABB AUX 4Q 24VDC E1.2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073751R1 ABB AUX 4Q 24VDC E1.2

1SDA073751R1

073751

ABB

1 Pcs.

AUX 4Q 24VDC E1.2 AUX CONTACT 4Q 24V-E1.2 AUX 4Q 24VDC E1.2/3-XT7-XT7M

Automation > Auxiliary contact block
Accessories E1.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An auxiliary contact assembly, designated as the 1SDA073751R1 ABB AUX 4Q 24VDC E1.2 from Abb, provides supplementary switching contacts for air circuit breakers. These units are deployed in electrical switchgear to relay precise breaker contact positions to automation systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Environmental Product Declaration - EPD: 9AKK108468A1900
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZE1AUX4D
  • EAN: 8015644776848
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 220 mm
  • Product Net Height: 40 mm
  • Product Net Depth / Length: 500 mm
  • Product Net Weight: 0.223 kg
  • Package Level 1 Units: box 1 piece

More info

▲
ABB EcoSolutions
Environmental Product Declaration - EPD9AKK108468A1900
9AKK108468A1901
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZE1AUX4D
EAN8015644776848
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width220 mm
Product Net Height40 mm
Product Net Depth / Length500 mm
Product Net Weight0.223 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width220 mm
Package Level 1 Height40 mm
Package Level 1 Depth / Length500 mm
Package Level 1 Gross Weight0.223 kg
Package Level 1 EAN8015644776848
Additional Information
Product Main TypeAccessories for Emax 2, Accessories for Emax 3, Accessories for XT
Product NameAccessory
Product TypeAccessory
Suitable ForE1.2
E1.3
XT7-XT7M
Suitable for Product ClassSACE Tmax XT
SACE Emax 2
SACE Emax 3
Technical
Configuration TypeLoose or configurable
Number of Auxiliary Contacts CO (SPDT)4
Order Multiple1 piece
StandardsIEC/UL
Certificates and Declarations
ATEX CertificateNo certification needed
Data Sheet, Technical Information1SDC200023D0209
1SDC210100D0204
Declaration of Conformity - CE9AKK106713A5546
UL CertificateNo certification needed
VDE CertificateNo certification needed
Instructions and Manuals1SDH000999R0601
External Classifications and Standards
ETIM 9EC000041 - Auxiliary contact block
ETIM 10EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC)4743 >> Auxiliary contact block
Object Classification CodeQ
UNSPSC39121522
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371302
