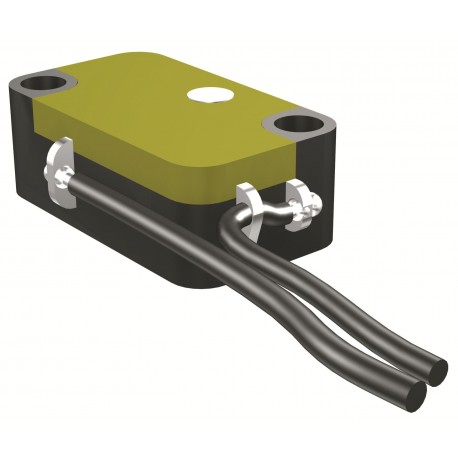

1SDA062112R1 ABB AUE T7 400Va.c. 3 EARLY CONTACTS
1SDA062112R1
062112
ABB
1 Pcs.
Automation > Auxiliary contact block
Accessories T7-X1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb AUE T7 400Va.c. 3 EARLY CONTACTS module provides specialized early-make or early-break signaling capability for large circuit breakers within power distribution switchgear. This accessory tracks mechanical breaker movement to sequence control operations and protect downstream electrical infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- REACH Declaration: 9AKK108466A1425
- RoHS Information: 9AKK108466A1424
- RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- EAN: 8015644646523
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.22 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 145 mm
- Package Level 1 Height: 60 mm
- Package Level 1 Depth / Length: 250 mm
- Package Level 1 Gross Weight: 0.26 kg
- Package Level 1 EAN: 8015644646523
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| EAN | 8015644646523 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.22 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 145 mm |
| Package Level 1 Height | 60 mm |
| Package Level 1 Depth / Length | 250 mm |
| Package Level 1 Gross Weight | 0.26 kg |
| Package Level 1 EAN | 8015644646523 |
| Additional Information | |
| Configuration Type | Mounted only |
| Number of Auxiliary Contacts CO (SPDT) | 3 |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC |
| Suitable For | T7 |
| Suitable for Product Class | SACE Tmax T |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDC210300D0201 |
| Classifications | |
| ETIM 7 | EC000041 - Auxiliary contact block |
| ETIM 8 | EC000041 - Auxiliary contact block |
| ETIM 9 | EC000041 - Auxiliary contact block |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371302 |
