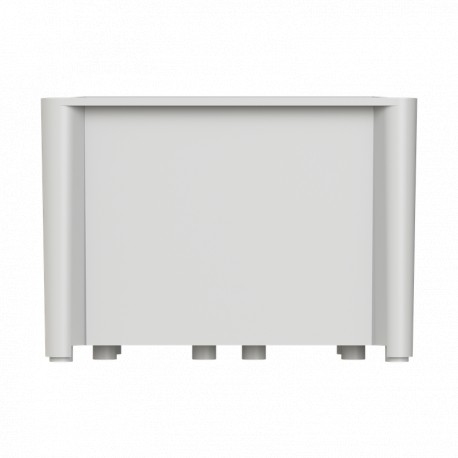

4TBO856009C0100 ABB APO 31 UT
4TBO856009C0100
856009
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
4TBO856009C0100 ABB APO 31 UT manufactured by Abb is a plastic housing unit used to protect electrical components from environmental hazards. Such protective enclosures are commonly deployed in industrial automation to shield terminal blocks, relays, and minor controllers from moisture and physical damage. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Flange Openings: 2
- Number of Conduit Inlets: 0
- Cover Plate Type: Optional
- Enclosure Type NEMA: Type12
- Door Type: Without Door
- Accessories Available: No
- Impact Resistance Rating: IK08
- Surface Finishing: Untreated
- Housing Material: Plastic
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 2 |
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Optional |
| Enclosure Type NEMA | Type12 |
| Door Type | Without Door |
| Accessories Available | No |
| Impact Resistance Rating | IK08 |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 131 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 1.1 kg |
| Built-In Depth (t2) | 140 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 4 piece |
| Package Level 1 Gross Weight | 4.3 kg |
| Replaced Product ID (OLD) | 856009 |
| Certificates and Declarations | |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
