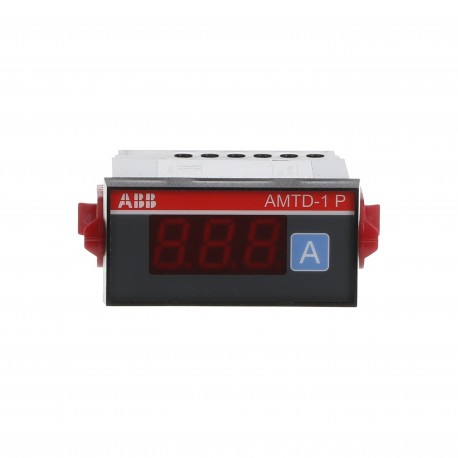

ABB 2CSG213615R4011 2CSG213615R4011 ABB AMTD-1 P Digital ammeter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSG213615R4011 ABB AMTD-1 P Digital ammeter

2CSG213615R4011

213615

ABB

1 Pcs.

AMTD-1 P Digital ammeter Amperim.digit. AMTD-1P Class 0.5

Automation > Ampere meter for installation
Measure, various ITSCE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB AMTD-1 P digital ammeter is a front-mounting single-phase digital meter engineered for precise electrical measurement in industrial panels. Digital ammeters offer enhanced readability and accuracy over mechanical dials, making them ideal for modern power management configurations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Accuracy: ±0,5% F.S. ±1digit at 25 °C
  • Measurement Scale: End 600 A
  • Measuring Range: 5...600 A
  • Model Number: Front mounting
  • Number of Phases: 1-phase
  • Meter Type: Digital
  • Current Type: AC
  • Frequency ( f ): 35 ... 400 Hz
  • Power Consumption (@P cons ): 4 W
  • Power Loss: 4 W
  • RoHS Declaration: 9AKK106713A5697
  • RoHS Information: Following EU Directive 2011/65/EU
  • RoHS Date: 20190722
  • REACHDeclaration: 9AKK108467A9482
  • REACH Information: True - contains substances > 0.1 mass percentage
  • REACH Date: 20230117

More info

▲
Technical
Accuracy±0,5% F.S. ±1digit at 25 °C
Measurement ScaleEnd 600 A
Measuring Range5...600 A
Model NumberFront mounting
Number of Phases1-phase
Meter TypeDigital
Electrical
Current TypeAC
Frequency (f)35 ... 400 Hz
Power Consumption (@Pcons)4 W
Power Loss4 W
Material Compliance
RoHS Declaration9AKK106713A5697
RoHS InformationFollowing EU Directive 2011/65/EU
RoHS Date20190722
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20230117
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation -40 ... 55 °C
Degree of ProtectionIP20
Environmental InformationSee RoHS Information
Dimensions
Product Net Width72 mm
Product Net Height26.5 mm
Product Net Depth / Length61.5 mm
Product Net Weight300 g
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.3 kg
Replacement Product ID (NEW)No replacement
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5697
Installation
Instructions and Manuals9AKK106930A5219
Mounting TypeFront Panel
Popular Downloads
Data Sheet, Technical Information9AKK107046A0430
External Classifications and Standards
ETIM 9EC002292 - Ampere meter for installation
ETIM 10EC002292 - Ampere meter for distribution board
eClassV11.0 : 27200304
Object Classification CodeP
