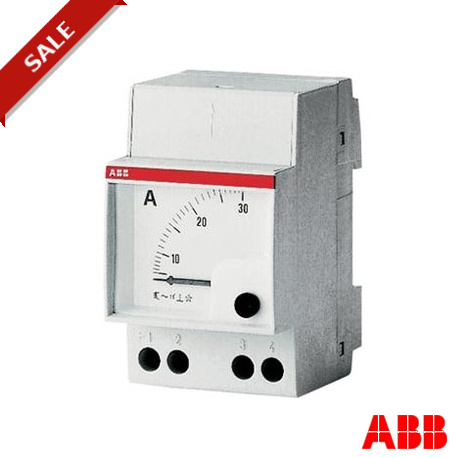

ABB AMT2/30 AMT2/30 2CSM410080R1001 ABB AMT2/30 Analog measuring Instr View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AMT2/30 2CSM410080R1001 ABB AMT2/30 Analog measuring Instr

AMT2/30

2CSM410080R1001

ABB

1 Pcs.

AMT2/30 Analog measuring Instr

Automation > Ampere meter for installation
Measure, various ITSCE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The AMT2/30 2CSM410080R1001 ABB AMT2/30 Analog measuring Instr is an analog measuring instrument designed to provide clear visual readouts of electrical parameters within industrial distribution setups. Technicians deploy panel meters of this type to monitor live electrical current levels continuously, ensuring circuits operate within safe parameters. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Meter Type: Analogue
  • Mounting Type: DIN-Rail
  • Current Range: 30 A
  • Power Loss: at Rated Operating Conditions per Pole 0.6 W
  • RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Information: 2CSC445003K0201
  • Product Net Width: 0.053 m
  • Product Net Height: 0.085 m
  • Product Net Depth: 0.060 m
  • Product Net Weight: 0.100 kg
  • EAN: 8012542029106
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 90303100
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 0.058 m
  • Package Level 1 Height: 0.085 m

More info

▲

AMT2/30 is an analogue ammeter for dc networks. Direct insertion up to 30A

Ordering

  • EAN:
    8012542029106
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    90303100

Dimensions

  • Product Net Width:
    0.053m
  • Product Net Height:
    0.085m
  • Product Net Depth:
    0.060m
  • Product Net Weight:
    0.100kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    0.058 m
  • Package Level 1 Height:
    0.085 m
  • Package Level 1 Length:
    0.053 m
  • Package Level 1 Gross Weight:
    0.2 kg
  • Package Level 1 EAN:
    8012542029106
  • Package Level 2 Units:
    1 piece
  • Package Level 2 Gross Weight:
    0.200 kg

Technical

  • Meter Type:
    Analogue
  • Mounting Type:
    DIN-Rail
  • Current Range:
    30 A
  • Power Loss:
    at Rated Operating Conditions per Pole 0.6 W

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

Classifications

  • Object Classification Code:
    P
  • ETIM 4:
    EC001440 - Current monitoring relay
  • ETIM 5:
    EC001440 - Current monitoring relay

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
