ABB 2CSM320250R1001 2CSM320250R1001 ABB AMT1/A1 Analog measuring Instr View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSM320250R1001 ABB AMT1/A1 Analog measuring Instr

2CSM320250R1001

320250

ABB

1 Pcs.

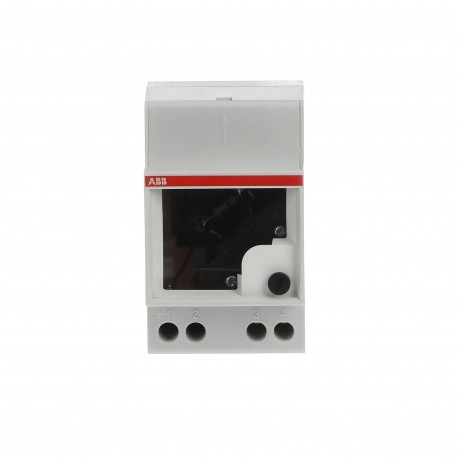

AMT1/A1 Analog measuring Instr Amperim.analog.AMT1/A1 Class 1.5 AMT1/A1 Analogue Ammeter

Automation > Ampere meter for installation
Measure, various ITSCE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An AMT1/A1 analog measuring instrument from ABB functions as an electromechanical device for visually monitoring alternating current magnitudes in industrial distribution switchboards. Panel technicians rely on analogue ammeters to provide immediate, continuous visual tracking of load currents without requiring auxiliary control power.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Current Rating: 5 A
  • Accuracy: ±1,5%
  • Measuring Range: 0...2500 A
  • Model Number: DIN rail
  • Needle Deflection: Maximum 90 °
  • Meter Type: Analogue
  • Options Provided: SCL 1-A1 scale type
  • Current Type: AC
  • Frequency ( f ): 50 ... 60 Hz
  • Power Loss: at Rated Operating Conditions per Pole 0.6 W
  • RoHS Declaration: 2CSC445003K0201
  • RoHS Information: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Date: 20060331
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: True - contains substances > 0.1 mass percentage
  • REACH Date: 20240429

More info

▲
Technical
Current Rating5 A
10 A
20 A
25 A
30 A
40 A
50 A
60 A
75 A
80 A
100 A
150 A
200 A
250 A
300 A
400 A
500 A
600 A
800 A
1000 A
1500 A
2000 A
2500 A
Accuracy±1,5%
Measuring Range0...2500 A
Model NumberDIN rail
Needle DeflectionMaximum 90 °
Meter TypeAnalogue
Options ProvidedSCL 1-A1 scale type
Electrical
Current TypeAC
Frequency (f)50 ... 60 Hz
Power Lossat Rated Operating Conditions per Pole 0.6 W
Material Compliance
RoHS Declaration2CSC445003K0201
RoHS InformationFollowing EU Directive 2002/95/EC August 18, 2005 and amendment
RoHS Date20060331
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP20
Environmental InformationSee RoHS Information
Dimensions
Width in Number of Modular Spacings3
Product Net Width52.5 mm
Product Net Height0.085 m
Product Net Depth / Length0.060 m
Product Net Weight0.100 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.2 kg
E-Number (Finland)6701062
Replacement Product ID (NEW)No replacement
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5695
Installation
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK107046A0430
External Classifications and Standards
ETIM 9EC002292 - Ampere meter for installation
eClassV11.0 : 27200304
Object Classification CodeP

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
