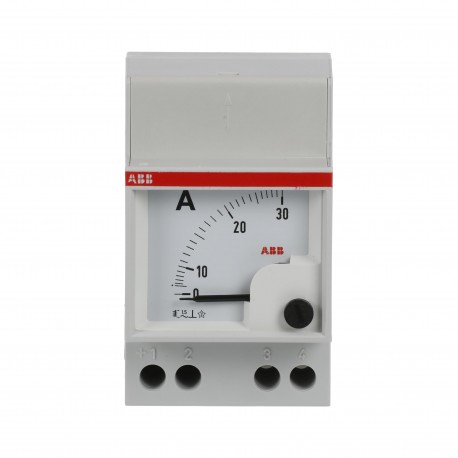

2CSM310080R1001 ABB AMT1/30 Analog measuring Instr
2CSM310080R1001
310080
ABB
1 Pcs.
Automation > Ampere meter for installation
Measure, various ITSCE
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB AMT1/30 analog measuring instrument functions as a DIN rail mountable dial meter built to track AC current draws up to thirty amperes. Industrial switchboard builders install such analog indicators to give operators an immediate physical reference for active electrical loads.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Accuracy: ±1,5%
- Measurement Scale: End 30 A
- Measuring Range: 0...30 A
- Model Number: DIN rail
- Needle Deflection: Maximum 90 °
- Meter Type: Analogue
- Current Type: AC
- Current Range: 30 A
- Frequency ( f ): 50 ... 60 Hz
- Power Loss: 1.2 W
- RoHS Declaration: 2CSC445003K0201
- RoHS Information: Following EU Directive 2002/95/EC August 18, 2005 and amendment
- RoHS Date: 20060331
- REACH Declaration: 9AKK108467A9482
- REACH Information: True - contains substances > 0.1 mass percentage
- REACH Date: 20240429
More info
▲| Technical | |
|---|---|
| Accuracy | ±1,5% |
| Measurement Scale | End 30 A |
| Measuring Range | 0...30 A |
| Model Number | DIN rail |
| Needle Deflection | Maximum 90 ° |
| Meter Type | Analogue |
| Electrical | |
| Current Type | AC |
| Current Range | 30 A |
| Frequency (f) | 50 ... 60 Hz |
| Power Loss | 1.2 W |
| Material Compliance | |
| RoHS Declaration | 2CSC445003K0201 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| RoHS Date | 20060331 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Degree of Protection | IP20 |
| Environmental Information | See RoHS Information |
| Dimensions | |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 0.085 m |
| Product Net Depth / Length | 0.060 m |
| Product Net Weight | 0.100 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.2 kg |
| E-Number (Finland) | 6701060 |
| Replacement Product ID (NEW) | No replacement |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106713A5695 |
| Installation | |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107046A0430 |
| External Classifications and Standards | |
| ETIM 9 | EC002292 - Ampere meter for installation |
| ETIM 10 | EC002292 - Ampere meter for distribution board |
| eClass | V11.0 : 27200304 |
| Object Classification Code | P |
