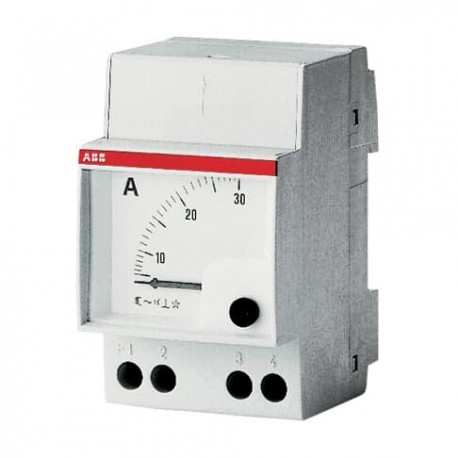

ABB 2CSM310060R1001 2CSM310060R1001 ABB AMT1/20 Analog measuring Instr View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CSM310060R1001 ABB AMT1/20 Analog measuring Instr

2CSM310060R1001

310060

ABB

1 Pcs.

AMT1/20 Analog measuring Instr Amperim.analog.AMT1/20 20A Class 1.5 AMT1/20 Analogue Ammeter

Automation > Ampere meter for installation
Measure, various ITSCE

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB AMT1/20 analog measuring instrument functions as a DIN rail mounted dial ammeter built for monitoring twenty-ampere AC applications. Switchboard manufacturers utilize these analog meters to provide reliable, maintenance-free visual feedback on current usage within industrial enclosures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Accuracy: ±1,5%
  • Measurement Scale: End 20 A
  • Measuring Range: 0...20 A
  • Model Number: DIN rail
  • Needle Deflection: Maximum 90 °
  • Meter Type: Analogue
  • Current Type: AC
  • Current Range: 20 A
  • Frequency ( f ): 50 ... 60 Hz
  • Power Loss: 1 W
  • RoHS Declaration: 2CSC445003K0201
  • RoHS Information: Following EU Directive 2002/95/EC August 18, 2005 and amendment
  • RoHS Date: 20060331
  • REACH Declaration: 9AKK108467A9482
  • REACH Information: True - contains substances > 0.1 mass percentage
  • REACH Date: 20240429

More info

▲
Technical
Accuracy±1,5%
Measurement ScaleEnd 20 A
Measuring Range0...20 A
Model NumberDIN rail
Needle DeflectionMaximum 90 °
Meter TypeAnalogue
Electrical
Current TypeAC
Current Range20 A
Frequency (f)50 ... 60 Hz
Power Loss1 W
Material Compliance
RoHS Declaration2CSC445003K0201
RoHS InformationFollowing EU Directive 2002/95/EC August 18, 2005 and amendment
RoHS Date20060331
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Degree of ProtectionIP20
Environmental InformationSee RoHS Information
Dimensions
Width in Number of Modular Spacings3
Product Net Width52.5 mm
Product Net Height0.085 m
Product Net Depth / Length0.060 m
Product Net Weight0.100 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.2 kg
E-Number (Finland)6701056
Replacement Product ID (NEW)No replacement
Certificates and Declarations
Declaration of Conformity - CE9AKK106713A5695
Installation
Mounting TypeDIN-Rail
Popular Downloads
Data Sheet, Technical Information9AKK107046A0430
External Classifications and Standards
ETIM 9EC002292 - Ampere meter for installation
ETIM 10EC002292 - Ampere meter for distribution board
eClassV11.0 : 27200304
Object Classification CodeP

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
