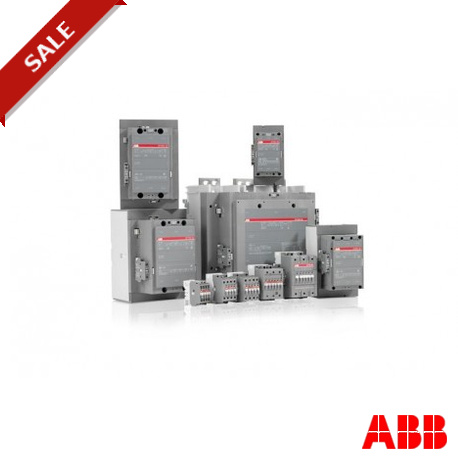

1SFL498029R7922 ABB AM185-30-22 220-240V Contactor
1SFL498029R7922
498029
ABB
1 Pcs.
Automation > Power contactor, AC switching
"A" SECRLP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SFL498029R7922 is an electrical contactor engineered for high-capacity motor control and heavy-duty industrial power distribution. This component manages heavy electrical currents safely in complex automation panels and large-scale machinery setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Main Contacts NO: 3
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 2
- Number of Auxiliary Contacts NC: 2
- Rated Operational Voltage: Main Circuit 690 V
- Rated Frequency (f): Main Circuit 50/60 Hz
- Conventional Free-air Thermal Current (I th ): acc. to IEC 60947-4-1, Open Contactors q = 40 °C 275 A
- Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: 8 x Ie AC-3
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3
- Short-Circuit Protective Devices: gG Type Fuses 160 A
- Maximum Electrical Switching Frequency: AC-3 300 cycles per hour AC-1 300 cycles per hour AC-2 / AC-4 150 cycles per hour
- Rated Operational Current DC-1 (I e ): (110 V) 2 Poles in Series, 40 °C 275 A (220 V) 3 Poles in Series, 40 °C 275 A
- Rated Operational Current DC-3 (I e ): (110 V) 2 Poles in Series, 40 °C 275 A (220 V) 3 Poles in Series, 40 °C 275 A
- Rated Operational Current DC-5 (I e ): (110 V) 2 Poles in Series, 40 °C 275 A (220 V) 3 Poles in Series, 40 °C 275 A
- Rated Insulation Voltage (U i ): acc. to UL/CSA 600 V acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
- Rated Impulse Withstand Voltage (U imp ): Main Circuit 8 kV
More info
▲A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 690 V. Magnetically latch, control voltage 220-240 V, AC/DC latch
Ordering
- EAN:
- 7320500339091
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85364900
Dimensions
- Product Net Width:
- 142.0mm
- Product Net Depth:
- 160.0mm
- Product Net Height:
- 196.0mm
- Product Net Weight:
- 3.500kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 170 mm
- Package Level 1 Length:
- 180 mm
- Package Level 1 Height:
- 245 mm
- Package Level 1 Gross Weight:
- 3.5 kg
- Package Level 1 EAN:
- 7320500339091
Technical
- Number of Main Contacts NO:
- 3
- Number of Main Contacts NC:
- 0
- Number of Auxiliary Contacts NO:
- 2
- Number of Auxiliary Contacts NC:
- 2
- Rated Operational Voltage:
- Main Circuit 690 V
- Rated Frequency (f):
- Main Circuit 50/60 Hz
- Conventional Free-air Thermal Current (Ith):
- acc. to IEC 60947-4-1, Open Contactors q = 40 °C 275 A
- Rated Operational Current AC-1 (Ie):
- (690 V) 55 °C 250 A
(690 V) 40 °C 275 A
(1000 V) 40 °C 200 A
(1000 V) 55 °C 200 A
(690 V) 70 °C 180 A
(1000 V) 70 °C 180 A
- Rated Operational Current AC-3 (Ie):
- (1000 V) 55 °C 95 A
(220 / 230 / 240 V) 55 °C 185 A
(690 V) 55 °C 170 A
(415 V) 55 °C 185 A
(440 V) 55 °C 185 A
(380 / 400 V) 55 °C 185 A
(500 V) 55 °C 170 A
- Rated Operational Power AC-3 (Pe):
- (500 V) 110 kW
(690 V) 132 kW
(220 / 230 / 240 V) 55 kW
(380 / 400 V) 90 kW
(440 V) 90 kW
(415 V) 90 kW
- Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:
- 8 x Ie AC-3
- Rated Making Capacity AC-3 acc. to IEC 60947-4-1:
- 10 x Ie AC-3
- Short-Circuit Protective Devices:
- gG Type Fuses 160 A
- Maximum Breaking Capacity:
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1600 A
- Maximum Electrical Switching Frequency:
- AC-3 300 cycles per hour
AC-1 300 cycles per hour
AC-2 / AC-4 150 cycles per hour
- Rated Operational Current DC-1 (Ie):
- (110 V) 2 Poles in Series, 40 °C 275 A
(220 V) 3 Poles in Series, 40 °C 275 A
- Rated Operational Current DC-3 (Ie):
- (110 V) 2 Poles in Series, 40 °C 275 A
(220 V) 3 Poles in Series, 40 °C 275 A
- Rated Operational Current DC-5 (Ie):
- (110 V) 2 Poles in Series, 40 °C 275 A
(220 V) 3 Poles in Series, 40 °C 275 A
- Rated Insulation Voltage (Ui):
- acc. to UL/CSA 600 V
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
- Rated Impulse Withstand Voltage (Uimp):
- Main Circuit 8 kV
- Mechanical Durability:
- 5 million
- Maximum Mechanical Switching Frequency:
- 300 cycles per hour
- Coil Operating Limits:
- (acc. to IEC 60947-4-1)0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) °C
- Rated Control Circuit Voltage (Uc):
- 60 Hz 220 ... 240 V
50 Hz 220 ... 240 V
DC Operation 220 ... 240 V
- Coil Consumption:
- Pull-in at Max. Rated Control Circuit Voltage 60 Hz 600 V·A
Holding at Max. Rated Control Circuit Voltage 50 Hz 35 V·A
Pull-in at Max. Rated Control Circuit Voltage 50 Hz 550 V·A
Holding at Max. Rated Control Circuit Voltage 60 Hz 40 V·A
- Operate Time:
- Between Coil Energization and NO Contact Closing 50 … 90 ms
Between Coil De-energization and NO Contact Opening 43 … 53 ms
Between Coil De-energization and NC Contact Closing 40 … 50 ms
Between Coil Energization and NC Contact Opening 45 … 85 ms
- Connecting Capacity-Main Circuit:
- Rigid Al-Cable 25…150 mm²
Bar 24 mm
Rigid Cu-Cable 6…185 mm²
- Connecting Capacity-Auxiliary Circuit:
- Solid 2x1…4 mm²
Flexible with Insulated Ferrule 1x0.75…2.5 mm²
Stranded 2x1…4 mm²
Flexible 2x0.75…2.5 mm²
Flexible with Ferrule 2x0.75…2.5 mm²
- Degree of Protection:
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
- Connecting terminals (delivered in open position) Main poles:
- Flat type c/w screws and bolts
- Terminal Type:
- Main Circuit: Bars
Environmental
- Ambient Air Temperature:
- Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25…+50 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40…+70 °C
Close to Contactor for Storage -40…+70 °C
- Maximum Operating Altitude Permissible:
- 3000 m
- Resistance to Shock acc. to IEC 60068-2-27:
- Shock Direction: A 5 g
Shock Direction: C2 5 g
Shock Direction: C1 5 g
Shock Direction: B2 5 g
Shock Direction: B1 5 g
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
- Maximum Operating Voltage UL/CSA:
- Main Circuit 600 V
- Horsepower Rating UL/CSA:
- (208 V AC) Three Phase 50 Hp
(440 ... 480 V AC) Three Phase 125 Hp
(550 ... 600 V AC) Three Phase 150 Hp
(220 ... 240 V AC) Three Phase 60 Hp
(200 V AC) Three Phase 50 Hp
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SFA1-89
- GL Certificate:
- GL_20261-04HH
- RINA Certificate:
- ELE060313XG/002
- RMRS Certificate:
- RMRS_12-03683-315
- RoHS Information:
- 1SFC101046D0203
Classifications
- ETIM 5:
- EC000066 - Magnet contactor, AC-switching
- UNSPSC:
- 39121529
